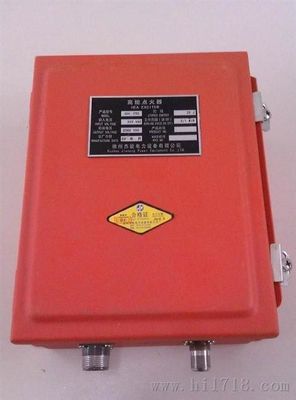

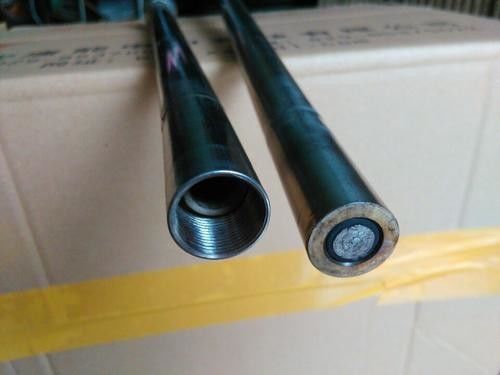

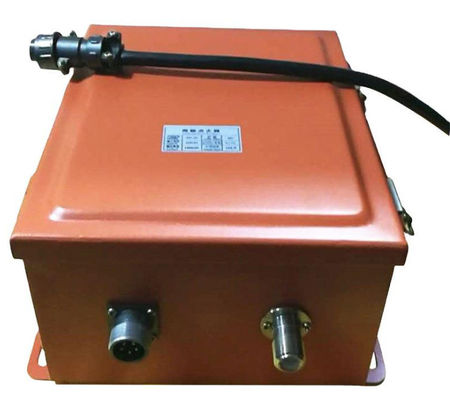

XDH Series XDH-20C High-Energy Ignition Device AC 220V XDZ-1 Ignite Rod Spark Rod Kabel Tegangan Tinggi

Name: XDH Series XDH-20C High-Energy Ignition Device AC 220V XDZ-1 Ignite Rod Spark Rod Kabel Tegangan Tinggi
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: XDH-20
Price: 210.00 USD
Availability: InStock

Nama merek:	OEM
Nomor Model:	XDH-20
MOQ:	1 set
Ketentuan Pembayaran:	T / T
Kemampuan Penyediaan:	200

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Tegangan:

220V ± 10% 50 / 60HZ

Energi:

20J

Frekuensi percikan:

12-14times / S

Ukuran bingkai:

300 * 200 * 120

batang pengapian:

M18 * 1.0 M18 * 1.5 M27 * 1.5

Suhu:

1300 ℃

Batang dia:

Φ16 Φ18

Kemasan rincian:

Kemasan kotak kayu

Menyediakan kemampuan:

200

Menyoroti:

XDH-20C Perangkat Pemicu Energi Tinggi

Perangkat pemicu energi tinggi AC 220V

Modul pembakaran energi tinggi

Deskripsi Produk

Portable High Performance Ignition System Hea Box for XDH High-Energy Ignition Device Assembly DC 12V, AC 220V

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head

2,Technical advantages and honor- Low ignition voltage；- Good temperature resistance；- Safety and reliability, strong ability to resist pollution

Applications:

As XDH high-energy ignition device assembly.

Specifications:

Brief introduction

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head.
2,Technical advantages and honor
- Low ignition voltage；
- Good temperature resistance；
- Safety and reliability, strong ability to resist pollution

Applications:

As XDH high-energy ignition device assembly.

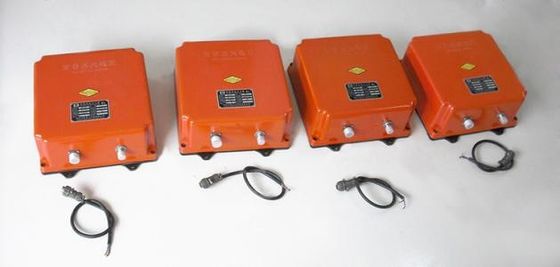

Product model and series

1. Product series

Sr.	Model	Description
1	XDH-1G	High pressure gap ignitor
2	XDH-2Z	DC charging portable ignition
3	XDH-6B	explosion-proof high-energy ignition
4	XDH-6L	Portable high-energy ignition
5	XDH-12T	Portable high-energy ignition
6	XDH-20B	explosion-proof high-energy ignition
7	XDH-20C	high-energy ignition
8	XDH-20L	high-energy ignition
9	XDH-50	high-energy ignition

【Note】As the series of products still cannot meet the requirements of users, according to the demand of design.

1. basic configuration:(leave)

2. Performance parameters

Various types of igniter performance:

Parameter name	Unit	Data
Parameter name	Unit	NDH-2Z ignition	NDH-6 series ignition	XDH- 20 series ignition	XDH-50 ignition
Energy storage	J	2	10	20	50
Working voltage	V	DC12	AC220
Output voltage	VDC		2500±5％
Spark frequency	(Times / sec)	1～3	2～10 Adjustable	7～17	2～10 Adjustable
Duty cycle (on / off)	S	30/60	120/60	300/60	120/60

3. Outline and mounting dimensions pls contact to confirm
