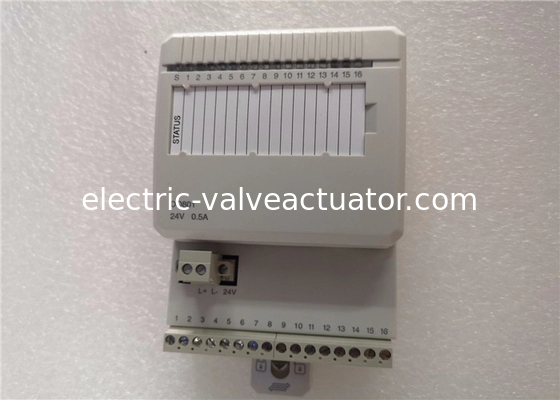

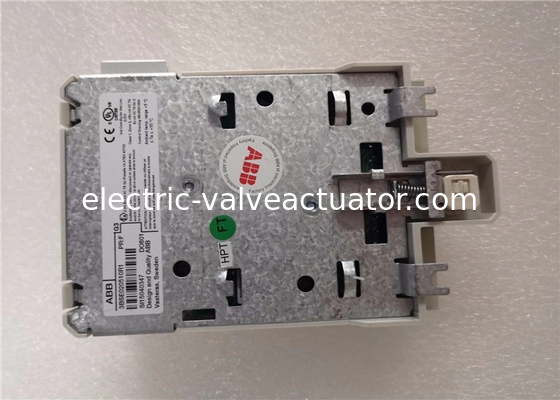

DI803 3BSE022362R1 230 V a.c./d.c digital input Digital I O Module ABB

Name: DI803 3BSE022362R1 230 V a.c./d.c digital input Digital I O Module ABB
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: DI803
Price: 210.00 USD
Availability: InStock

Nama merek:	ABB
Nomor Model:	DI803
MOQ:	1
harga:	Negotiations

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Swiss

Nilai tegangan isolasi:

50v

Tegangan uji dielektrik:

500VAC

Konsumsi saat ini +5 V Modulebus:

70mA

Disipasi kekuatan:

1,6W

Kemasan rincian:

Kotak asli baru

Menyoroti:

ABB digital input module 230V

DI803 digital I/O module

ABB ESP controller module

Deskripsi Produk

DI803 3BSE022362R1 230 V a.c./d.c digital input Digital I/O Module ABB

Product Attributes

Rated Insulation Voltage	50V
Dielectric Test Voltage	500VAC
Current Consumption +5 V Modulebus	70mA
Power Dissipation	1.6W

Product Description

The DI803 is an 8 channel 230 V a.c./d.c. digital input module for the S800 I/O. This module has 8 digital inputs. The a.c. input voltage range is 164 - 264 volt and the input current is 7.6 mA at 230 V a.c. The d.c. input range is 175 - 275 V and the input current is 1.6 mA at 220 V. The inputs are individually isolated. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier.

Features and Benefits

8 channels for 230 V a.c./d.c. inputs with current sinking
Individually isolated channels
Voltage supervision of field input power
Input status indicators
Signal filtering
Process connection via detachable connectors

General Information

Type	Digital Input
Signal specification	230 V a.c., 220 V d.c.
Article number	3BSE022362R1
Number of channels	8
Signal type	Current sinking
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800L

Detailed Data

Input voltage range, "0"	0..50 V a.c., 0..40 V d.c.
Input voltage range, "1"	164..264 V a.c., 175..275 V d.c.
Input impedance	30 kΩ (a.c.) 134 kΩ (d.c.)
Isolation	Individually isolated channels
Filter times (digital, selectable)	2, 4, 8, 16 ms
Input frequency range	47..63 Hz
Analog filter On/Off delay	5 / 28 ms
Maximum field cable length	200 meters (219 yards) 100 pF/m for a.c., 600 meters for d.c.
Rated insulation voltage	250 V
Dielectric test voltage	2000 V a.c.
Power dissipation	Typ. 2.8 W
Current consumption +5 V Modulebus	50 mA
Current consumption +24 V Modulebus	0
Current consumption +24 V external	0
Supported wire size	Solid: 0.05-2.5 mm2, 30-12 AWG Stranded: 0.05-1.5 mm2, 30-12 AWG Recommended torque: 0.5-0.6 Nm Stripping length 6-7.5mm, 0.24-0.30 inch

Environment and Certification

CE mark	Yes
Electrical safety	IEC 61131-2, UL 508
Hazardous Location	-
Marine certification	ABS, BV, DNV-GL, LR, RS, CCS
Protection rating	IP20 according to IEC60529
Corrosive atmosphere ISA-S71.04	G3
Climatic operating conditions	0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree	Degree 2, IEC 60664-1
Mechanical operating conditions	IEC/EN 61131-2
EMC	EN 61000-6-4 and EN 61000-6-2
Overvoltage categories	Class I according to IEC 61140; (earth protected)
Equipment class	Class I according to IEC 61140; (earth protected)
Max ambient temperature	55 °C (131 °F), for vertical mounting 40 °C (104 °F)
RoHS compliance	EN 50581:2012
WEEE compliance	DIRECTIVE/2012/19/EU
