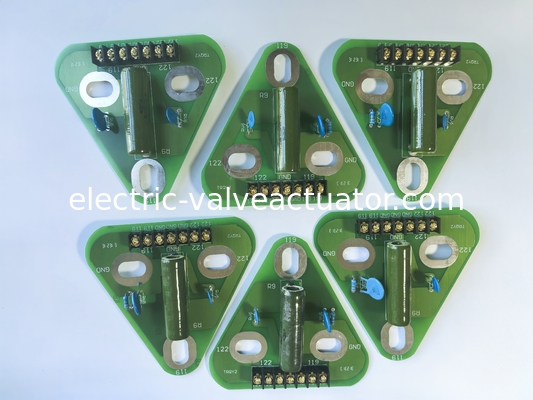

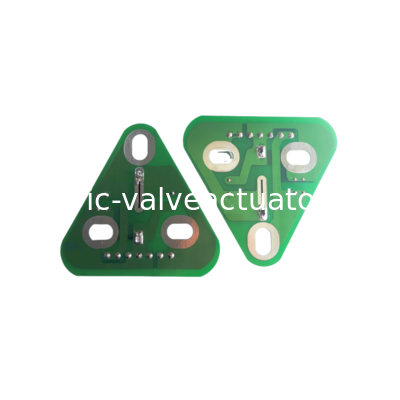

Efficient dust removal purifier GGAJ02 silicon rectifier power transformer TRQY2 sample board

Efficient dust removal purifier GGAJ02 silicon rectifier power transformer TRQY2 sample board

Nama merek:	OEM
Nomor Model:	Trqy2
MOQ:	1
harga:	Negotiations

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Nama Produk:

Template Pengambilan Sampel Segitiga

Pemrosesan yang disesuaikan:

Penggunaan produk:

Pengambilan sampel transformator

Ruang lingkup aplikasi:

Kontrol Kolektor Debu Listrik

Kemasan rincian:

Kotak asli baru

Menyoroti:

silicon rectifier power transformer

transformer protection relay with warranty

dust removal purifier transformer board

Deskripsi Produk

Efficient dust removal purifier GGAJ02 silicon rectifier power transformer TRQY2 sample board

Product name	Triangle sampling template
Customized processing	yes
Product Usage	Transformer Sampling
Scope of application	Electric dust collector control

Product Overview

The TRQY2 Silicon Rectifier Power Transformer Sampling Board is specifically tailored to complement the GGAJ02 High-Efficiency Dust Removal Purifier, delivering stable and reliable power support for its continuous operation. Crafted with high-grade silicon steel cores and precision-wound windings, this sampling board ensures efficient voltage rectification and consistent power output, directly meeting the GGAJ02's power requirements for multi-stage filtration systems and air-purifying components.

Key Features

Compact and integrated design for seamless installation with the GGAJ02
Excellent thermal stability and overload protection
Prevents power fluctuations that could affect dust-capturing efficiency
Maintains optimal performance in industrial, manufacturing, and commercial environments

Technical Specifications

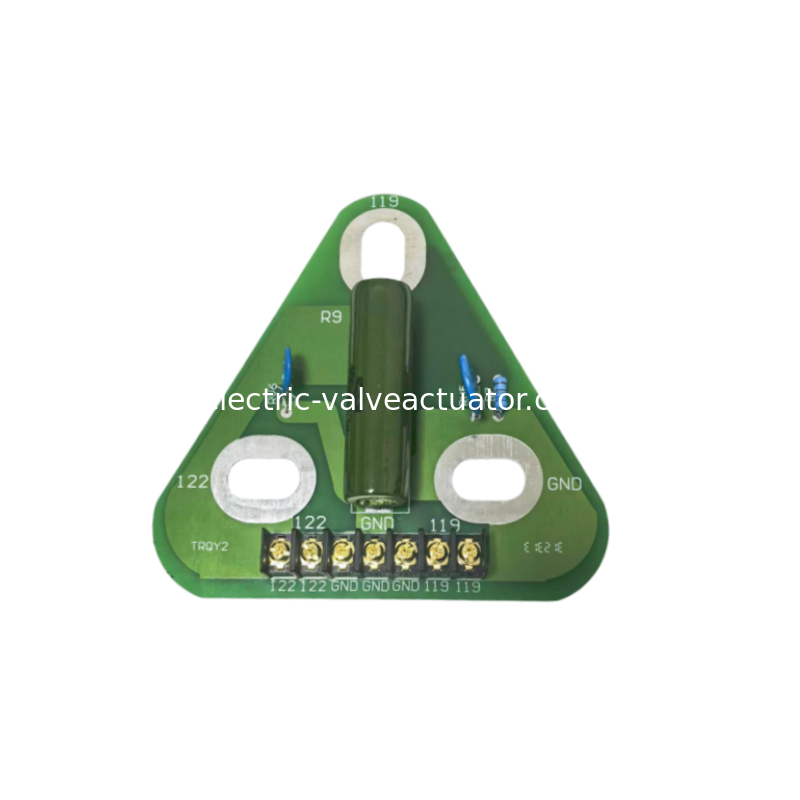

The product is also known as Triangle Sampling Sample. It converts the secondary voltage and current of the silicon rectifier transformer of the electrostatic precipitator into voltage signals of 0~10V and 0~6V, respectively, which are displayed and controlled by the control cabinet, forming a closed-loop control system to protect the transformer. The 119 secondary voltage is sampled, GND is grounded, and 122 is grounded for the secondary current.

System Integration

As a dedicated power matching component for the GGAJ02 Dust Removal Purifier, the TRQY2 Sampling Board guarantees a harmonious and dependable system operation, enhancing overall air purification efficiency while minimizing downtime and operational costs.
