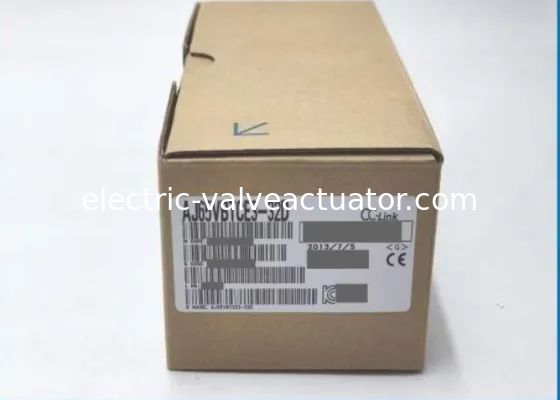

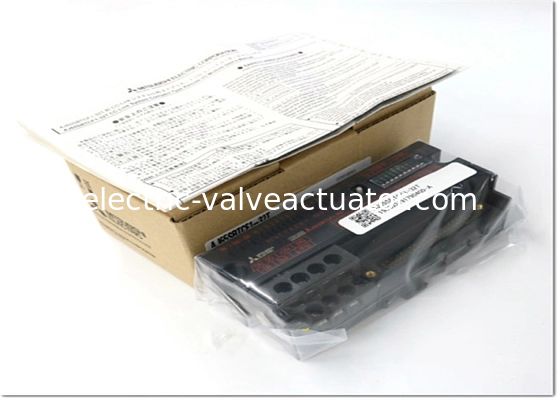

AJ65VBTCE3-32D Mitsubishi Universal Model Redundant Power Supply Module

Name: AJ65VBTCE3-32D Mitsubishi Universal Model Redundant Power Supply Module
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: AJ65VBTCE3-32D
Price: 210.00 USD
Availability: InStock

Nama merek:	MITSUBISHI
Nomor Model:	AJ65VBTCE3-32D
MOQ:	1
harga:	Negotiations

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Jepang

Kapasitas program:

8K Langkah

kecepatan pemrosesan operasi dasar (instruksi LD):

0,12 mikrodetik

Masukan:

100 hingga 240 VAC

Keluaran:

5 V DC/3 A

Jenis:

Modul Catu Daya Redundan

Kemasan rincian:

Kotak asli baru

Menyoroti:

Mitsubishi redundant power supply module

universal power supply module with warranty

ESP controller power supply module

Deskripsi Produk

AJ65VBTCE3-32D Mitsubishi Universal Model Redundant Power Supply Module

The Mitsubishi AJ65VBTCE3-32D is a high-density, 32-point digital input module designed as a remote device station for the CC-Link field network. It allows a master PLC (e.g., from the Mitsubishi Q Series) to monitor the status of 32 discrete field devices (like sensors and switches) over a single network cable. This module is essential for building distributed I/O systems, significantly reducing wiring costs and simplifying the control architecture in medium to large-scale automation applications such as automotive assembly lines, material handling systems, and process control plants.

Features

CC-Link Network Compatibility: Functions as a remote device station on the high-speed CC-Link network, enabling efficient data exchange with the master station.
High I/O Density: Integrates 32 digital input points into a single, compact module, maximizing space efficiency in control panels.
Wide Input Voltage Range: Supports a common industrial DC voltage range (12-24 VDC), ensuring compatibility with a vast array of sensors and switches.
Diagnostic LEDs: Features module status (RUN, ERR) and communication status (L RUN, L ERR) LEDs for quick system monitoring and troubleshooting.
Easy Installation: Utilizes a removable terminal block for straightforward wiring and module replacement.
No Program Required: The I/O mapping is automatically handled by the network parameters set in the master PLC, simplifying setup.

Material & Primary Uses

Material: The module features a robust plastic housing for the main body with a metal connector for network communication. The terminal block is typically made of high-quality, flame-retardant plastic.
Primary Uses:
- Creating distributed I/O systems in large factories or production lines.
- Connecting a large number of digital sensors (proximity, photoelectric) and switches to a central control system via CC-Link.
- Packaging machinery, automated assembly systems, and conveyor control systems.

Important Parameters

Parameter	Specification
Product Series	MELSEC AJ65VBTCE (CC-Link Remote I/O)
Model	AJ65VBTCE3-32D
Module Type	Digital Input Module (CC-Link Remote Device Station)
Number of Channels	32
Input Type	Sink / Source
Rated Input Voltage	24 VDC
Operating Voltage Range	12 to 24 VDC ±10%
Input Current	Approx. 3 mA per point (at 24 VDC)
ON Voltage / ON Current	10 VDC or higher / 2.5 mA or higher
OFF Voltage / OFF Current	4 VDC or lower / 1 mA or lower
Isolation	Photocoupler isolation between field inputs and internal circuit.
Compatible Network	CC-Link (Ver. 1.10)
Station Type	Remote Device Station
External Power Supply	24 VDC ±10% (Required for input circuitry)
Weight	Approx. 0.2 kg
