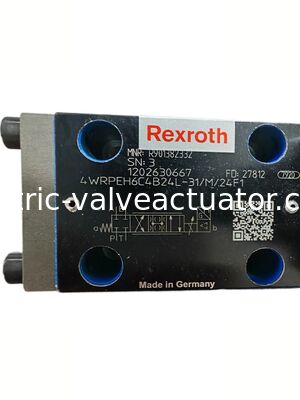

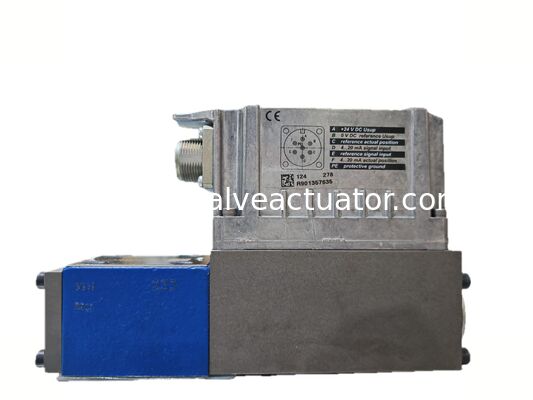

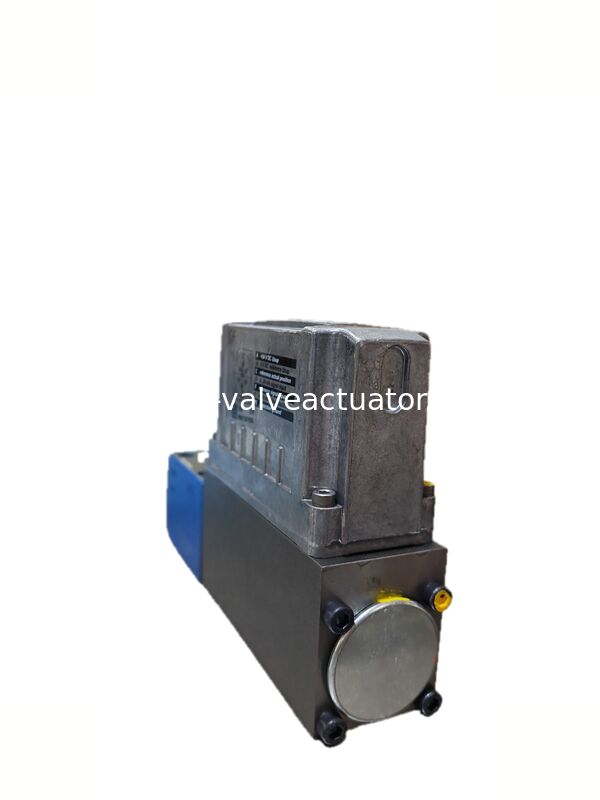

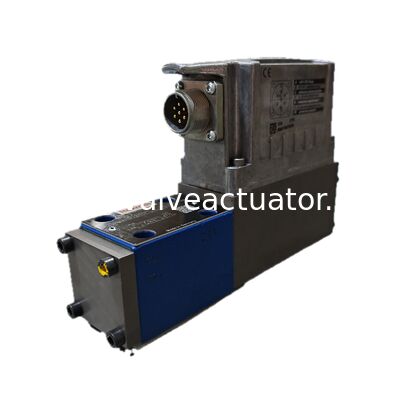

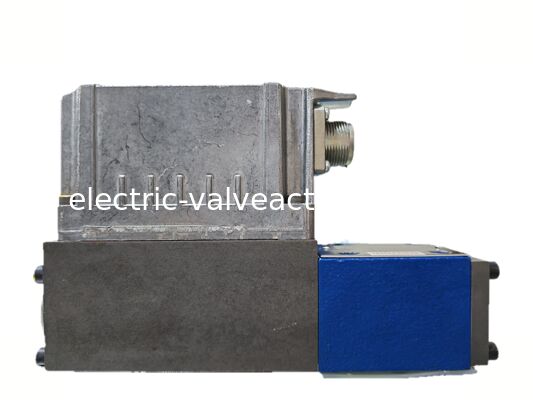

Rexroth R901382332 4WRPEH6C4B24L-3X/M/24F1 Proportional Directional Control Valve

Name: Rexroth R901382332 4WRPEH6C4B24L-3X/M/24F1 Proportional Directional Control Valve
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: 4WRPEH6C4B24L-3X/M/24F1
Price: 210.00 USD
Availability: InStock

Nama merek:	Rexroth
Nomor Model:	4WRPEH6C4B24L-3X/M/24F1
MOQ:	1
harga:	Negotiations

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Jerman

dimensi (l*w*h):

Rentang Aliran (gpm):

5 GPM

Laju aliran maksimum:

40l/mnt

Tekanan maksimum:

350bar

Ukuran Koneksi Port:

3/4 in

Koneksi tekanan:

1/2 inci

Kemasan rincian:

Kotak asli baru

Menyoroti:

Rexroth proportional directional control valve

4WRPEH6C4B24L control valve with warranty

Power station proportional valve 24F1

Deskripsi Produk

Rexroth R901382332 4WRPEH6C4B24L-3X/M/24F1 Proportional Directional Control Valve

The Rexroth R901382332 4WRPEH6C4B24L-3X/M/24F1 proportional directional control valve is a high-performance core component from Rexroth, a global leader in industrial hydraulics. This 4/4-way direct-operated model features integrated on-board electronics (OBE) and electrical position feedback, delivering exceptional precision, reliability, and efficiency to electro-hydraulic control systems.

Key Features

Servo-quality control spool and steel sleeve for minimal hysteresis (≤0.2%)
315 bar maximum operating pressure for ports P, A and B
250 bar maximum pressure for port T
24 l/min rated flow at 70 bar pressure differential
Linear flow characteristic (L)
4...20 mA command input (F1 interface)
24 VDC power supply for seamless integration
NBR seals ("M" designation) for DIN 51524 mineral oils
IP65 protection rating
Strong vibration resistance (up to 25 g for 24 hours in three dimensions)
Fail-safe spool position
Operating temperature range: -20°C to +50°C

Technical Specifications

Parameter	Specification
Valve Type	4/4-way proportional directional control valve
Operation	Direct-operated with on-board electronics
Maximum Pressure (P, A, B)	315 bar
Maximum Pressure (T)	250 bar
Rated Flow	24 l/min at 70 bar Δp
Command Input	4...20 mA (F1 interface)
Power Supply	24 VDC
Response Time	10 ms (0...100% signal step)
Mounting	ISO 4401-03-02-0-05 subplate

Applications

Widely applied in plastic injection molding, die-casting, stamping, metallurgy, heavy machinery, construction, agriculture, and automated production lines. The valve undergoes factory calibration for stable performance (±1% zero compensation, <1% temperature drift at 40°C variation), combining energy efficiency with easy installation and maintenance to boost hydraulic system performance.
