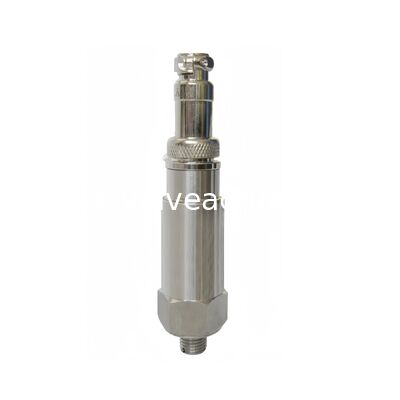

SDJ-SG-02YA High Sensitivity Vibration Speed Sensor with Stable Output and Stainless Steel Casing for Rotational Speed Measurement

Name: SDJ-SG-02YA High Sensitivity Vibration Speed Sensor with Stable Output and Stainless Steel Casing for Rotational Speed Measurement
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: SDJ-SG-02YA
Price: 1.00 USD
Availability: InStock

Nama merek:	OEM
Nomor Model:	SDJ-SG-02YA
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Rentang Frekuensi:

1 ~400Hz

Kepekaan:

30.0mv/mm/s ± 2mv (Sensitivitas dapat disesuaikan sesuai kebutuhan pengguna)

Akselerasi maksimal:

Kesalahan sistematis:

<3%

Tegangan Catu Daya:

DC+24V

Lingkungan Operasi:

-25 ～70 ℃

Metode Pengukuran:

Vertikal Atau Horisontal

Bahan casing:

Baja Tahan Karat

Kemasan rincian:

Kotak asal baru

Menyoroti:

High Sensitivity Vibration Speed Sensor

Stable Output Rotational Speed Sensor

Stainless Steel Casing Vibration Velocity Sensor

Deskripsi Produk

SDJ-SG-02YA High Sensitivity Vibration Speed Sensor Stable Output

Product Overview

The SDJ-SG-02YA vibration velocity sensor enables continuous, long-term vibration monitoring and protection of rotating machinery when used with compatible vibration monitors. This high-sensitivity sensor is specifically designed for vibration measurement and protection applications on large mechanical equipment casings.

Key Applications

Steam turbines vibration monitoring
Fans and blowers protection systems
Water pumps vibration measurement
Coal mills and similar industrial equipment

Technical Operation

This sensor utilizes a polycrystalline silicon spring mounted on a wafer surface to create a precise micromechanical structure. The integrated signal conditioning circuit processes the input to deliver an output voltage that is directly proportional to vibration velocity, enabling accurate motion detection and measurement.

Measurement Capabilities

When mechanical equipment vibrates, the sensor core moves simultaneously, allowing precise measurement of motion, impact, and vibration caused by the dynamic movement of equipment casings. This provides reliable data for machinery protection and predictive maintenance programs.
