Hua Heng VS-3 High Sensitivity 40mV/mm/s Vibration Velocity Sensor with Explosion-proof ExiaIIBT5 and Wide Frequency Response 4-5000Hz

Name: Hua Heng VS-3 High Sensitivity 40mV/mm/s Vibration Velocity Sensor with Explosion-proof ExiaIIBT5 and Wide Frequency Response 4-5000Hz
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: VS-3
Price: 1.00 USD
Availability: InStock

Nama merek:	Hua Heng
Nomor Model:	VS-3
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Kemasan rincian:

Kotak asli baru

Menyoroti:

High Sensitivity 40mV/mm/s Vibration Velocity Sensor

Explosion-proof ExiaIIBT5 Vibration Sensor

Wide Frequency Response 4-5000Hz Industrial Vibration Monitor

Deskripsi Produk

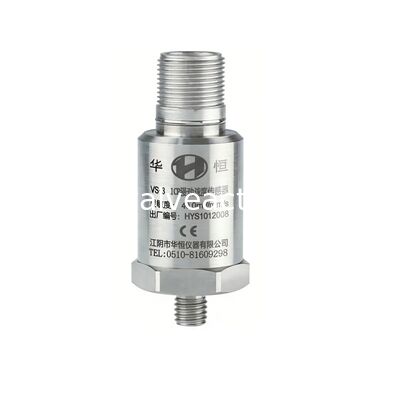

Hua Heng VS-3 Vibration Velocity Sensor

High sensitivity industrial vibration monitoring solution for precise machinery condition assessment and predictive maintenance.

Key Specifications

Sensitivity: 40mV/mm/s ±5% (measured at 20℃, 60 Hz, and intensity of 10.0mm/s)

Amplitude limit: ≤2000μm (peak-to-peak)

Frequency response: 4～5000Hz

Maximum withstandable acceleration: 10g

Explosion-proof certification: ExiaIIBT5 (intrinsically safe)

Power supply: DC 24V; 3～8mA

Operating Environment

Model	Temperature Range	Humidity
Standard VS-3	-30℃～100℃	≤95% (non-condensing)
High Temperature VS-3H	-30℃～120℃	≤95% (non-condensing)

Physical Characteristics

Measurement Direction: Vertical or Horizontal

Weight: 200g

Dimensions: Φ24mm×81mm (including waterproof connector)

Fixing Screw Holes: M10mm×1.5mm×8mm (deep) or M10mm×1mm×8mm (deep)
