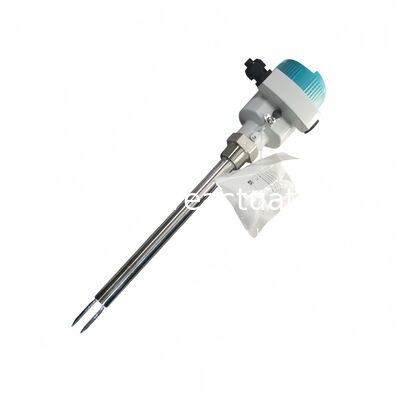

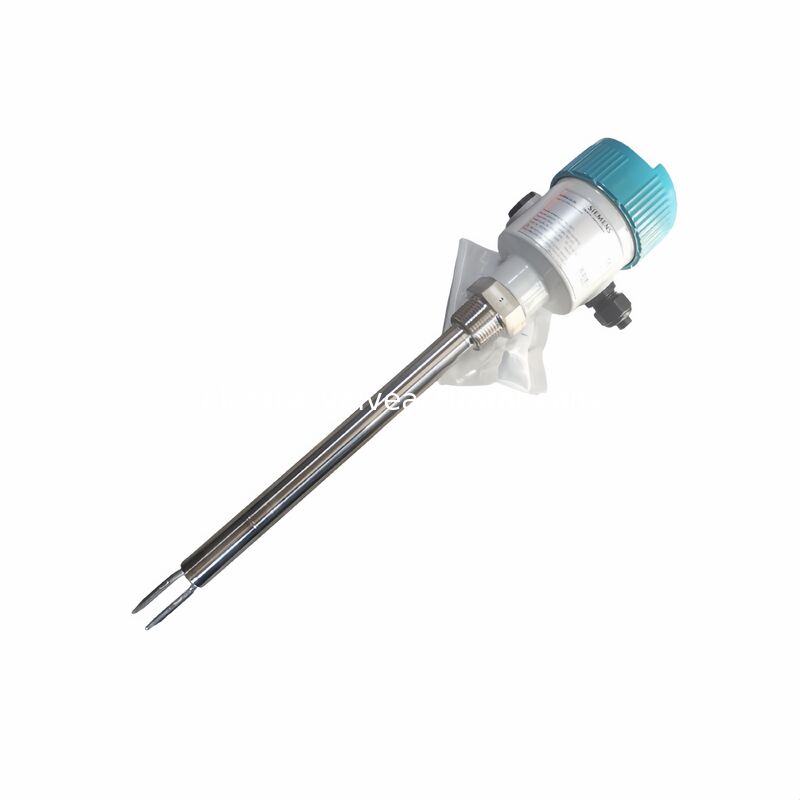

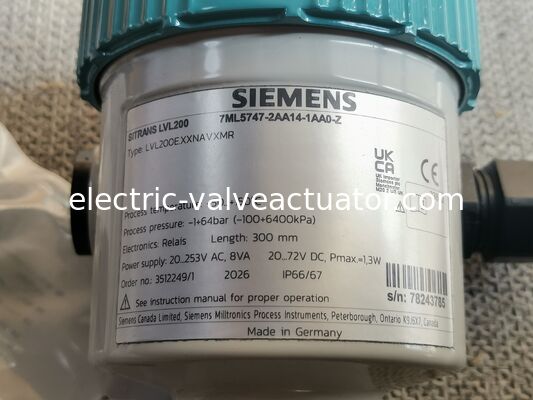

Siemens SITRANS LVL200 Level Switch Model 7ML5747-2AA14-1AA0-Z-Y01

Name: Siemens SITRANS LVL200 Level Switch Model 7ML5747-2AA14-1AA0-Z-Y01
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: 7ML5747-2AA14-1AA0-Z-Y01
Price: 210.00 USD
Availability: InStock

Nama merek:	Siemens
Nomor Model:	7ML5747-2AA14-1AA0-Z-Y01
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Jerman

Suhu proses:

-50 ～ +150 ℃

Tekanan proses:

-1 hingga +64 bar (-100 hingga +6400 kPa)

Tegangan Pasokan:

DC; 20 hingga 72 V DC

Komunikasi konsumsi daya:

8VA

Konsumsi Daya DC:

Maksimum 1,3 W

Panjang probe:

300mm

Peringkat Perlindungan:

IP66 / IP67

Apakah itu mendukung kustomisasi:

Kemasan rincian:

Kotak Asli Baru

Menyoroti:

Siemens SITRANS LVL200 level switch

magnetic level gauge with warranty

SITRANS LVL200 model 7ML5747

Deskripsi Produk

Siemens SITRANS LVL200 Level Switch Model 7ML5747-2AA14-1AA0-Z-Y01

The Siemens SITRANS LVL200 Level Switch, model 7ML5747-2AA14-1AA0-Z-Y01, is a high-reliability vibrating fork point level switch engineered for precise liquid and slurry level detection in demanding industrial environments. Featuring Y01 configuration and rigid extension design, this top-mounted instrument delivers consistent performance for critical applications including overfill protection, high/low level monitoring, and pump dry-run prevention across diverse process industries.

Advanced Vibrating Fork Technology

Utilizing advanced vibrating fork technology, the switch employs a piezoelectric drive to oscillate the fork at approximately 1,200 Hz. When the fork contacts media, the frequency shifts instantly, triggering a reliable switching signal that ensures accurate detection even in challenging conditions with turbulence, bubbles, foam, or minor buildup. The instrument operates effectively with media density ≥ 0.5 g/cm³, accommodating various liquid and slurry types.

Robust Construction & Performance

Maximum Pressure: 64 bar g

Maximum Temperature: 250 °C

Process Connection: 1" NPT thread in 316L stainless steel with PFA coating

Vibration Immunity: Stable operation in challenging environments

Key Features & Applications

Overfill protection systems
High and low level monitoring
Pump dry-run prevention
Corrosion-resistant construction
Immunity to external vibrations
Suitable for harsh industrial environments

Safety & Compliance

The switch is SIL 2 certified (IEC 61508 / IEC 61511) for critical safety applications, featuring built-in fault monitoring to detect fork corrosion, vibration loss, or piezo drive failures—enabling proactive maintenance. It is suitable for hygienic processes and hazardous areas, meeting RoHS, WEEE, and relevant hazardous area approvals.

Tag:

Siemens SITRANS LVL200 Vibrating Fork Level Switch with 280mm Probe Length and Relay Output for 64 Bar Pressure Resistance
