QBJ-3PN Eccentricity Monitor - Rotary Machinery Shaft Eccentricity Monitoring and Protection Device

Name: QBJ-3PN Eccentricity Monitor - Rotary Machinery Shaft Eccentricity Monitoring and Protection Device
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: QBJ-3PN
Price: 1.00 USD
Availability: InStock

Nama merek:	OEM
Nomor Model:	QBJ-3PN
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Kemasan rincian:

Kotak Asli Baru

Menyoroti:

0～200um Eccentricity Monitor

4～20mA Shaft Eccentricity Monitoring Device

Alarm Relay Rotational Speed Sensor

Deskripsi Produk

QBJ-3PN Eccentricity Monitor - Rotary Machinery Shaft Eccentricity Monitoring and Protection Device

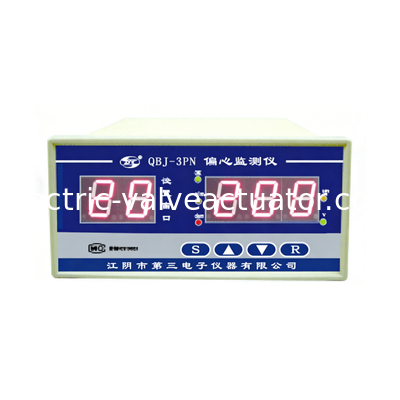

The QBJ-3PN eccentricity monitoring instrument provides comprehensive monitoring and protection for rotating machinery shafts. This system consists of a monitoring instrument and a 3800XL-Φ8mm eddy current sensor, delivering reliable eccentricity measurement that is essential for evaluating the overall mechanical condition of rotating equipment.

Eccentricity measurement has become indispensable during steam turbine start-up or shutdown operations. The system enables visualization of shaft bending caused by thermal effects or gravitational forces, providing critical data for machinery health assessment.

Measurement Applications

Eccentricity measures shaft bending at low speeds, detecting issues caused by:

Pre-existing mechanical bending
Temporary temperature-induced bending
Gravity bending under static conditions

The rotor's eccentric position (shaft radial position) indicates bearing wear, applied load magnitude from misalignment, and determines shaft azimuth angle for stability assessment.

Technical Specifications

Measurement Range	0～200μm (peak to peak eccentricity)
Frequency Response	0.17Hz～10Hz (1～600cpm) Above 600 rpm: displays shaft vibration signal
Accuracy	Linearity Error: <0.5% (full scale) System Error: <±2%
Output	Constant Current: 4～20mA (DCS compatible) Alarm/Danger Switch: Passive contact DC24V/2A Noise Level: <1% (full scale) no signal
Linear Range	2mm
Operating Temperature	Instrument: -25℃～45℃, relative humidity <80% (Sensor specs per 3800XL-A01 manual)
Dimensions	160mm (W) × 80mm (H) × 260mm (D)
Cutout Dimensions	153mm (W) × 77mm (H) × 260mm (D)
Power Supply	AC220V±10%/50Hz

Main Functions

Independent relay outputs for alarm and danger conditions
Configurable measuring range limits with 4-20mA current output
Disconnection detection protection with 5-second delay recovery
Fully adjustable alarm/danger values within measurement range
Maximum measurement value memory function
Gap voltage measurement display
Automatic return to measurement state after 1 minute of inactivity
