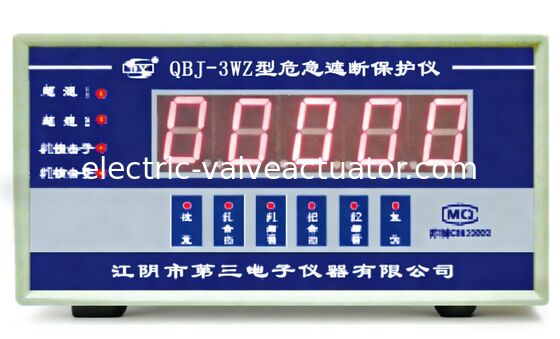

QBJ-3WZ type speed monitoring emergency trip protection device

Name: QBJ-3WZ type speed monitoring emergency trip protection device
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: QBJ-3WZ
Price: 1.00 USD
Availability: InStock

Nama merek:	OEM
Nomor Model:	QBJ-3WZ
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Kemasan rincian:

Kotak Asli Baru

Menyoroti:

QBJ-3WZ speed monitoring device

emergency trip protection sensor

rotational speed monitoring device

Deskripsi Produk

QBJ-3WZ Speed Monitoring Emergency Trip Protection Device

The QBJ-3WZ emergency shutdown protection device serves as a critical safety component for steam turbine units, providing comprehensive monitoring throughout operation. During normal conditions, it continuously monitors turbine speed. In overspeed scenarios, the secondary emergency shutdown striker activates via centrifugal force, initiating an immediate turbine shutdown. The system employs three QBJ-CS-1 type sensors: one for speed measurement and two dedicated to emergency shutdown functions.

Technical Specifications

Speed Measurement Range	300～9999 rpm
Speed Display Range	0～9999 rpm
Speed Measurement Accuracy	0.1%
Input Signal	Vp-p=0.05～30V
Emergency Interruption Impactor Detection Speed	n>2500 rpm
Emergency Interruption Detection Speed Accuracy	n<±5 rpm
Overspeed 1 Alarm Speed	3300 rpm (user-configurable)
Overspeed 2 Alarm Speed	3240 rpm (user-configurable)
Alarm Node Output Capacity	AC220V (3A)
Power Supply	AC220V±10%/50Hz
Sampling Frequency	1/64 second incremental sampling
Instrument Installation	Panel mounting, Mounting Hole Dimensions: 154mm * 78mm * 260mm (WHD)
Operating Environment - Instrument	-25℃～45℃ (Relative Humidity ≤80%)
Operating Environment - Sensor	-10℃～100℃ (Relative Humidity ≤90%)
Sensor Mounting Thread	M16*1
Sensor Screw Length	L60～200mm (customizable)

Primary Functions

Real-time display of current unit speed with emergency trip indication after striker deployment
Emergency stop functionality for immediate shutdown
Overspeed alarm system with configurable thresholds
Maximum turbine speed capture and recording
Block display function for operational status
Enhanced anti-interference capability for reliable operation

This protection device ensures operational safety and reliability for steam turbine systems through precise speed monitoring and rapid emergency response capabilities.
