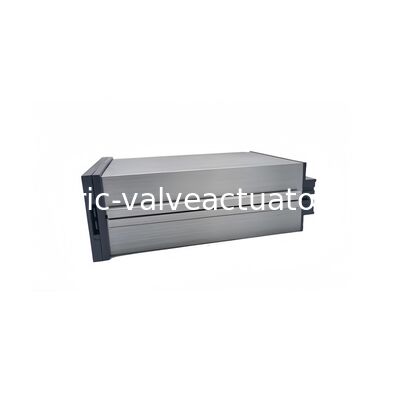

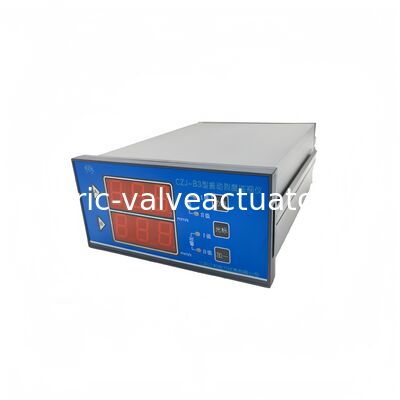

Zhong He CZJ-B3 Vibration Severity Monitor – Industrial Vibration Measuring Instrument

Name: Zhong He CZJ-B3 Vibration Severity Monitor – Industrial Vibration Measuring Instrument
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: CZJ-B3
Price: 1.00 USD
Availability: InStock

Nama merek:	Zhong He
Nomor Model:	CZJ-B3
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Rentang Pengukuran:

（0～30,0） mm/dtk

Akurasi Pengukuran:

±1,0% dari skala penuh (pada 25℃)

Ukuran:

Lebar 160×Tinggi 80×Kedalaman 225 (mm)

Catu daya:

（85～265）VAC

Kemasan rincian:

Kotak Asli Baru

Menyoroti:

industrial vibration severity monitor

CZJ-B3 vibration measuring instrument

rotational speed sensor with warranty

Deskripsi Produk

Zhong He CZJ-B3 Vibration Severity Monitor – Industrial Vibration Measuring Instrument

The CZJ-B3 vibration severity monitor is an essential detection and protection instrument for various rotating mechanical equipment including fans, compressors, and steam turbine generators. Designed for continuous monitoring and measurement of absolute peak-to-peak vibration or vibration velocity on rotating machinery bearings, this instrument provides proportional current output for direct connection to DCS, PLC systems, and paperless recorders. When vibration amplitude exceeds preset limits, it automatically activates alarm relay switch contacts.

This high-precision instrument features stable performance, strong anti-interference capability, and high reliability. It is widely applicable across power generation, machinery, chemical, and metallurgical industries, making it ideal for monitoring system designs in small to medium-sized rotating machinery installations.

Key Features

Compatible input signals: magneto-electric speed sensors, piezoelectric speed sensors, piezoelectric acceleration sensors
Measurement range: CZJ-B4/B4G: (0-200) μm peak-to-peak (customizable); CZJ-B3/B3G: (0-20.0) mm/s RMS (customizable)
High accuracy: ±1.0% of full scale at 25℃
Three-digit LED digital display with resolution of 1 (CZJ-B4/B4G) or 0.1 (CZJ-B3/B3G)
Active DC (4-20) mA current output with ±1.0% accuracy and 500Ω maximum load
Buffer output for sensor raw signal (TDM signal)
Programmable alarm settings across full measurement range
Relay switch output with normally open contacts (AC250V/2A, DC28V/2A)
Configurable alarm delay: 0.1s, 1s, or 3s (default 1s)

Technical Specifications

Frequency Response	CZJ-B4/B4G: (14-100)Hz; CZJ-B3/B3G: (11-100)Hz (with SZ series magneto-electric speed sensor) CZJ-B4/B4G: (10-200)Hz; CZJ-B3/B3G: (8-200)Hz (with ZYB1288/ZYB1298 piezoelectric sensors)
Operating Environment	Temperature: 0-50℃; Storage: -20-60℃ Humidity: 20-90% (non-condensing) No corrosive or strong magnetic fields
Power Supply	(85-265)VAC; 220VAC (refer to product nameplate for actual wiring)
Dimensions	Panel mount: 16080225mm (cutout: 15276mm) Wall mount: 29019092mm (mounting: 170272mm)
