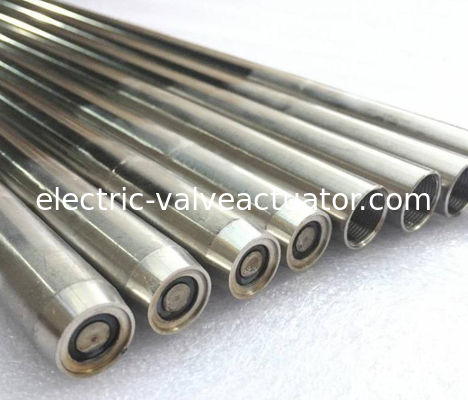

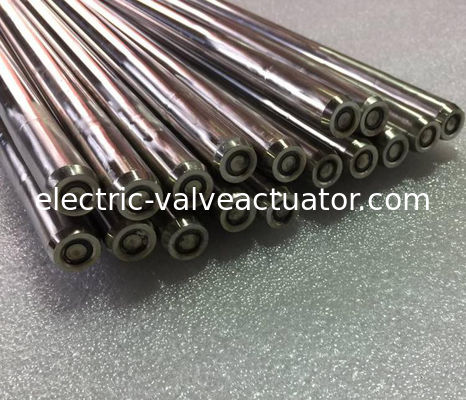

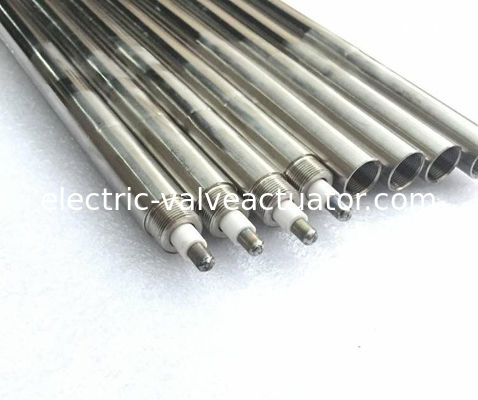

Boiler ignition system Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod spark gap

Nama merek:	OEM
Nomor Model:	XDZ-1
MOQ:	1 Set
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	200

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

voltase:

2500V

Energi:

20J

Memicu frekuensi:

12-14 kali /s

Ukuran Bingkai:

300*200*120

Benang:

M18*1.0 M18*1.5 M27*1.5

Suhu:

1300 ℃

Rod Dia:

Φ12 、 φ16 、 φ18

Kemasan rincian:

Kemasan kotak kayu

Menyediakan kemampuan:

200

Menyoroti:

boiler ignition system Φ18 spark gap

ignition gun rigid rod spark

high performance ignition system spark rod

Deskripsi Produk

Boiler Ignition System Φ18 Ignition Gun

This high-energy ignition system features a spark gap rigid rod spark rod designed for reliable boiler ignition applications.

Applications

Boiler ignition system

Product Overview

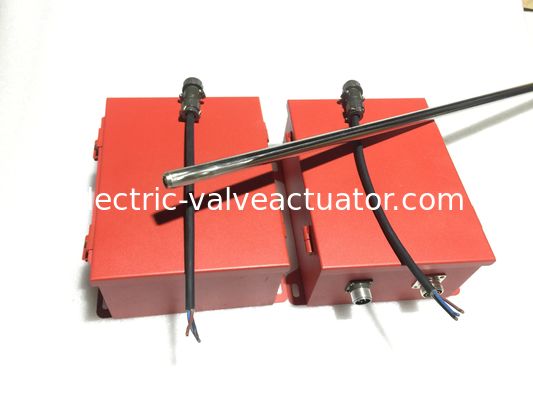

This ignition system utilizes DC voltage input from ignition cables to discharge high-energy electric sparks at the forming head, providing reliable ignition for industrial boiler systems.

Technical Advantages

Low ignition voltage
Excellent temperature resistance
Safety and reliability with strong pollution resistance

Product Series

Model	Description
XDH-1G	High pressure gap ignitor
XDH-2Z	DC charging portable ignition
XDH-6B	Explosion-proof high-energy ignition
XDH-6L	Portable high-energy ignition
XDH-12T	Portable high-energy ignition
XDH-20B	Explosion-proof high-energy ignition
XDH-20C	High-energy ignition
XDH-20L	High-energy ignition
XDH-50	High-energy ignition

Custom designs available to meet specific user requirements beyond standard product series.

Performance Parameters

Parameter	Unit	6 Series	XDH-20 Series	XDH-50
Energy Storage	J	2	10 \| 20	50
Working Voltage	V	DC12	AC220	AC220
Output Voltage	VDC	2500±5%
Spark Frequency	Times/sec	1-3	2-10 Adjustable	2-10 Adjustable
Duty Cycle (On/Off)	S	30/60	120/60	120/60
