Bernard Controls STX40 Electric Actuator 2.2kW 3 Phase 400V Explosion Proof Actuator

Name: Bernard Controls STX40 Electric Actuator 2.2kW 3 Phase 400V Explosion Proof Actuator
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: STX40
Price: 285.00 USD
Availability: InStock

Nama merek:	Bernard
Nomor Model:	STX40
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Tegangan (v):

400V

Frekuensi (Hz):

50 Hz

Siklus kerja terukur:

S4-30%

Nilai Saat Ini:

5.1 SEBUAH

Kekuatan:

2,2kW

Torsi pembukaan katup:

300nm

Torsi penutupan katup:

300nm

Kecepatan:

61 rpm

Kecepatan rotasi:

67,75 putaran per menit

voltase:

400V

Kemasan rincian:

Kotak Asli Baru

Deskripsi Produk

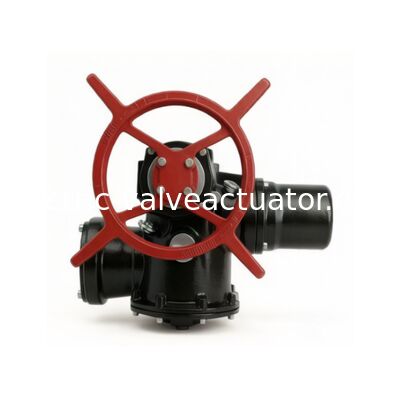

Bernard Controls STX40 Electric Actuator

2.2kW 3 Phase 400V Explosion Proof Actuator

Product Overview

The Bernard Controls STX40 Electric Actuator is a high-performance, explosion-proof solution engineered for reliable valve automation in hazardous industrial environments. With a 2.2kW motor, 3-phase 400V power supply, and rigorous explosion-proof certification, it delivers robust performance while ensuring maximum safety in critical applications.

Safety Certifications & Environmental Protection

Certified to IECEx and ATEX standards
Qualified for gas (Zone 1 & 2, up to IIC) and dust (Zone 21 & 22, up to IIIC) hazardous areas
IP68 protection (10m/96h) and C5 corrosion resistance
Operating temperature range: -30°C to +70°C (optional low temperature -55°C)

Advanced Control System

Enhanced Intelli+® V3 control system
Namur NE 107 signaling and emergency shutdown
Partial stroke test capability
Precise speed control and self-learning algorithm for optimized positioning
Built-in data logger records 50 alarms and 15 days of environmental parameters

Motor & Control Capabilities

The 2.2kW 3-phase motor provides strong torque and stable operation, compatible with on-off, positioning, and modulating control (Class A+, B+, III) to meet diverse process requirements.

Integration & Communication

Supports multiple fieldbus interfaces including Modbus, Profibus, and HART for seamless integration with industrial control systems.

Applications

Ideal for petrochemical, natural gas, and other high-risk industries where reliability and explosion protection are non-negotiable.

Customization

Multiple models available that can be customized according to user parameters.
