Fluke 721 Series Precision Pressure Calibrator | Industrial Pressure Calibration Instrument

Nama merek:	Fluke
Nomor Model:	Seri 721
MOQ:	1
harga:	Negotistical

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

OEM

Jangkauan Tekanan Rendah:

-14 psi hingga +16 psi

Kisaran tekanan:

-14 psi hingga +16 psi

Suhu Operasional:

-10 °C hingga +50 °C

Suhu Penyimpanan:

-20 °C hingga +60 °C

Persyaratan daya:

6,0V DC

Ukuran:

7,9 x 4,3 x 2,3 inci (20 x 11 x 5,8 cm)

Berat:

3539 kg (1 pon 3 ons)

Kemasan rincian:

Kotak Asli Baru

Deskripsi Produk

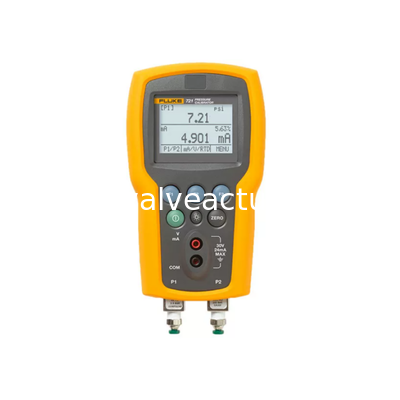

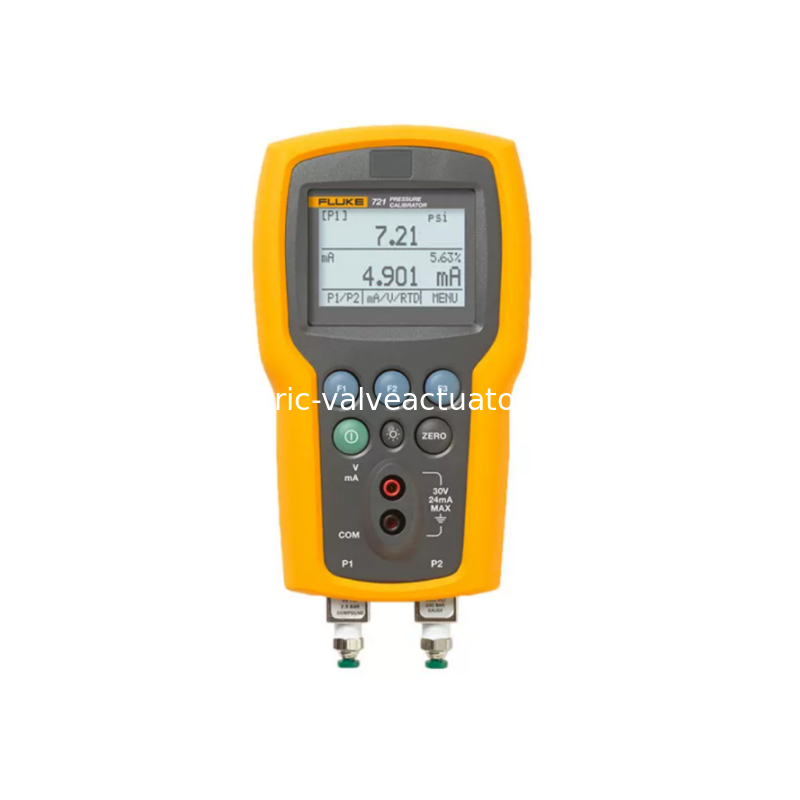

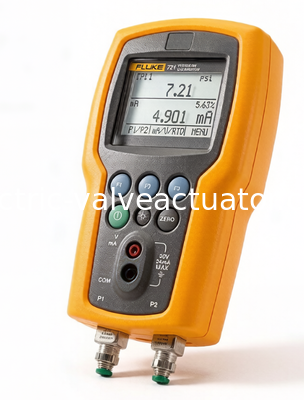

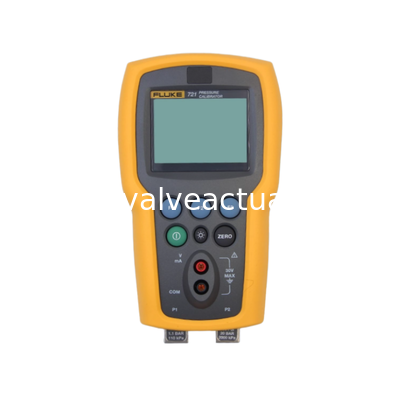

Fluke 721 Series Precision Pressure Calibrator

Industrial-grade pressure calibration instrument designed for precision measurement and calibration applications in demanding environments.

General Technical Specifications

Instrument Settings	Recall Last Power-On Setup
Operating Temperature	-10 °C to +50 °C
Storage Temperature (without batteries)	-20 °C to +60 °C
Altitude	2,000 m
Protection Rating	IP-40
Power Requirements	6.0 V DC
Battery Life	>35 hours (for primary use)
Number of Batteries	4 Standard AA Batteries
Dimensions (H x W x D)	7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
Weight	539 g (1 lb 3 oz)
Connector/Port Pressure	Two, 1/8 in NPT, 700P Series Pressure Module: RTD Probe

Electrical and Temperature Measurements (1 Year)

Functions	Range	Resolution	Accuracy
mA Measurement	0 to 24 mA	0.001 mA	Reading ±0.015% ±0.002mA
V DC Measurement	0 to 30 V DC	0.001 V	Reading ±0.015% ±0.002 V
Temperature Measurement (RTD/Ohms)¹	-40 °C to 150 °C (-40 °F to 302 °F)	0.01 °C, 0.01 °F	Reading ±0.015% ±0.02 ohms ±0.1 °C (±0.2 °F)
Loop Power Supply	24 V	N/A	24 mA @ 24 V

¹ Combined uncertainty with 720 RTD probe accessory: ±0.25 °C (±0.45 °F)

Provide multiple models

Fluke-721-1601

Fluke-721-1603

Fluke-721-1605

Fluke-721-1610

Fluke-721-1615

Fluke-721-1630

Fluke-721-1650

Fluke-721-3601

Fluke-721-3603

Fluke-721-3605

Fluke-721-3610

Fluke-721-3615

Fluke-721-3630

Fluke-721-3650
