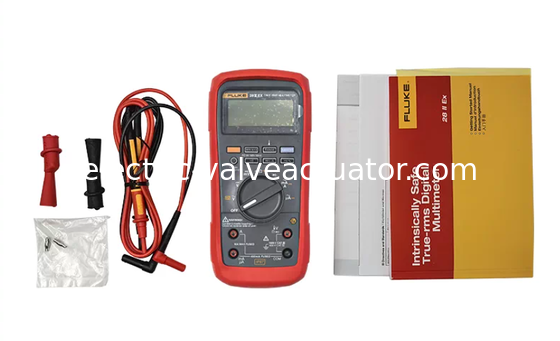

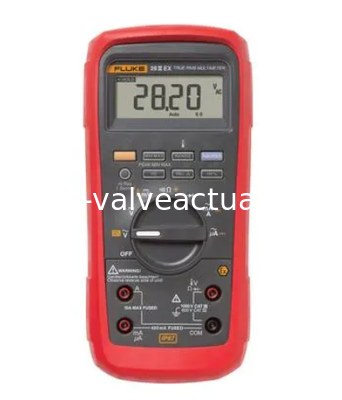

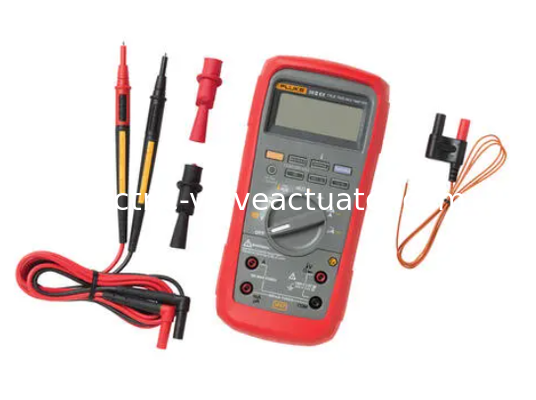

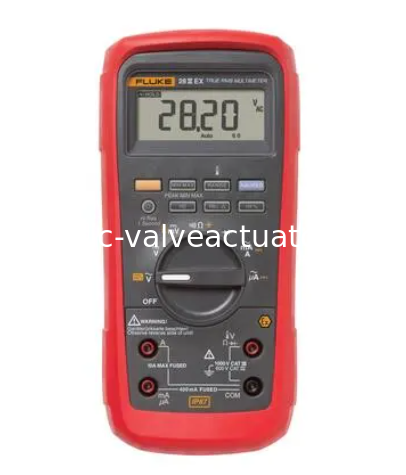

Fluke 28II Ex Rugged Waterproof True RMS Multimeter with Intrinsic Safety Certification

Name: Fluke 28II Ex Rugged Waterproof True RMS Multimeter with Intrinsic Safety Certification
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: 28II
Price: 210.00 USD
Availability: InStock

Nama merek:	Fluke
Nomor Model:	28II
MOQ:	1
harga:	Negotistical

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

OEM

Rentang Tegangan DC:

0,1 mV hingga 1000 V

Kemasan rincian:

Kotak Asli Baru

Deskripsi Produk

Fluke 28II Ex Rugged Waterproof True RMS Multimeter with Intrinsic Safety Certification

The Fluke 28II Ex is a rugged, waterproof multimeter designed for demanding industrial environments with intrinsic safety certification for hazardous locations.

Accuracy Specifications

Accuracy specifications are displayed as ± (% of reading + digits)

Measurement Range	Accuracy
DC Voltage: 0.1 mV to 1000 V	±(0.05% + 1)
AC Voltage: 0.1 mV to 1000 V	±(0.7% + 4)
DC Current: 0.1 μA to 10 A	±(0.2% + 4)
AC Current: 0.1 μA to 10 A	±(1% + 2)
Resistance: 0.1 Ω to 50 MΩ	±(0.2% + 1)
Conductance: 60.00 nS	±(1.0% + 10)
Diode Test: 2.0 V	±(2.0% + 1)
Duty Cycle: 0.0% to 99.9%	Rise Time < 1 µs, within ±(0.2%/kHz + 0.1%)
Capacitance: 10 nF to 9,999 μF	±(1% + 2)
Frequency: 0.5 Hz to 199.99 kHz	±(0.005% + 1)
Temperature: -200°C to +1090°C (-328°F to +1994°F)	±(1% + 10)°C [±(1% + 10)°F]

Technical Features

Display Count: 6000/19999 counts in high-resolution mode
Peak Capture: Records transients up to 250 µs
Minimum/Maximum/Average Recording: Displays signals up to approximately 100 ms

Safety Certifications

ATEX {Ex} II 2G Ex ia IIC T4 Gb
{Ex} I M1 Ex ia I Ma
NEC-500 Class I, Zone 1, Groups A-D, 130°C
IECEx Ex ia IIC T4 Gb
Ex ia I Ma
GOST R Ex 1Ex ia IIC T4 Gb X
PO Ex ia I Ma X
IP6X

General Specifications

Power Supply: Three AAA Batteries
Battery Life: 400 Hours
Display: LCD with Backlight
External Protection: Rubber Case
Warranty: Three Years
Dimensions with Case (H x W x L): 6.4 x 10.0 x 19.8 cm (2.5 x 3.9 x 7.8 in)
Weight with Case: 700 g (1.54 lb)
