ABB MFE190-04UD-09A0-2 Servo Drive | Single Phase 200–240VAC Industrial Motor Driver

Name: ABB MFE190-04UD-09A0-2 Servo Drive | Single Phase 200–240VAC Industrial Motor Driver
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: MFE190-04UD-09A0-2
Price: 210.00 USD
Availability: InStock

Nama merek:	ABB
Nomor Model:	MFE190-04UD-09A0-2
MOQ:	1
harga:	Negotistical

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

OEM

Tegangan masukan:

1/3~ 200...240 V AC

Masukan Saat Ini:

20A

Frekuensi Masukan:

50/60Hz

Tegangan keluaran:

3~ 0...U1

Arus keluaran:

Nominal 9A

Kapasitas kelebihan beban:

Kelebihan beban 7,5A 300% 3s

Frekuensi Keluaran:

0...500Hz

Pendinginan:

Pendinginan udara

Kelas Perlindungan:

IP20

Kemasan rincian:

Kotak Asli Baru

Deskripsi Produk

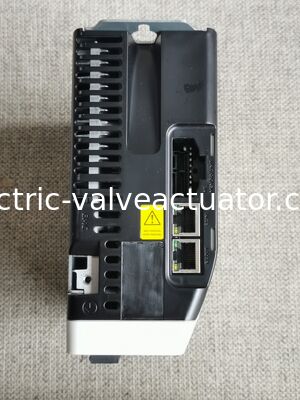

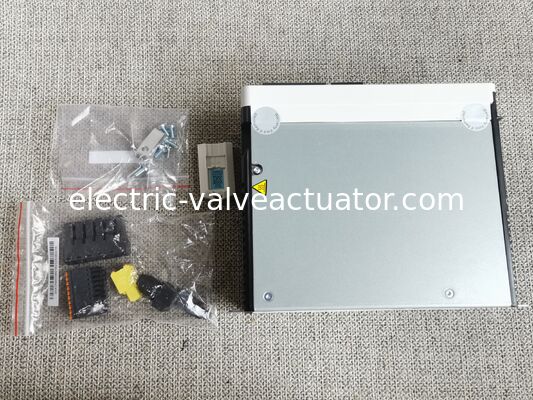

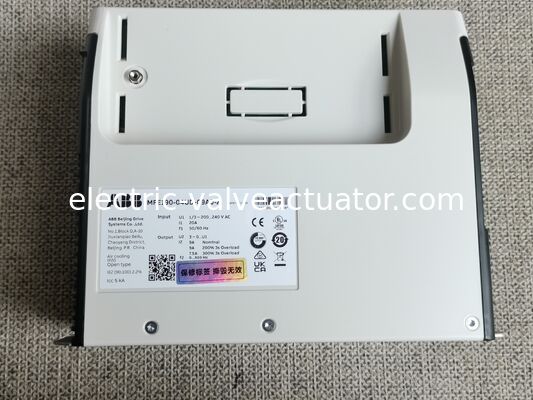

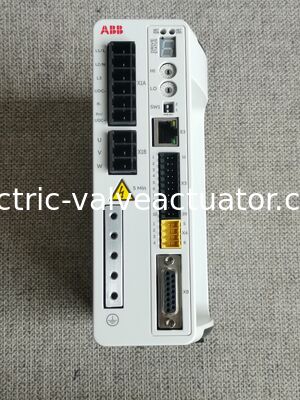

ABB MFE190-04UD-09A0-2 Servo Drive

The ABB MFE190-04UD-09A0-2 is a compact, high-performance single-phase servo drive from ABB's MicroFlex e190 series, designed for precise and flexible industrial motion control. Rated for 200-240VAC single-phase input with a 9A continuous current output, it delivers stable power output and exceptional dynamic response for small-to-medium automation machinery.

Key Features

Single-phase 200-240VAC input with 9A continuous current output
Supports multiple motor types: synchronous servo, asynchronous induction, and linear servo motors
Robust overload capacity: 200% for 3 seconds and 300% peak overload
Advanced 8kHz PWM vector modulation technology with over 95% efficiency
Integrated multi-protocol Ethernet interfaces (EtherCAT, PROFINET IO, Modbus TCP/IP)
Universal encoder feedback options and rich digital & analog I/O ports
Lightweight and rugged frame design with wide temperature range operation up to 55°C
Compliant with EU ecodesign standards with comprehensive protection functions

Technical Specifications

Input Voltage	200-240VAC Single Phase
Continuous Current	9A
Overload Capacity	200% for 3 seconds, 300% peak
Efficiency	>95%
Operating Temperature	Up to 55°C
Communication Protocols	EtherCAT, PROFINET IO, Modbus TCP/IP

Applications

Ideal for: Packaging equipment, automated assembly lines, CNC machinery, and small industrial automation systems. Serves as a cost-effective and high-reliability motion control solution.
