Bürkert Type 2871 Electronic Modulating Valve for Precise Media Management

Nama merek:	Burkert
Nomor Model:	Ketik 287
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

OEM

Tekanan:

PN16

Kapasitas memori:

256kb

Akurasi penyaringan:

25μm

Metode aktuasi:

Manual / Listrik / Pneumatik

Ukuran Koneksi Port:

1/4 inci

Jenis keluaran:

Digital (RS-485)

Ukuran Koneksi:

1/8 inci

Berikan dan output:

3/4 pt

Bahan:

Baja Tahan Karat

Tegangan masukan:

24Vdc

Diameter nominal:

8mm

Kisaran tekanan:

0,2-10bar, Maks

Laju Aliran Maksimum:

40l/mnt

Model:

RQ4P1FP16-D

Materi aktuator:

Aluminium

Kemasan rincian:

Kotak Asli Baru

Deskripsi Produk

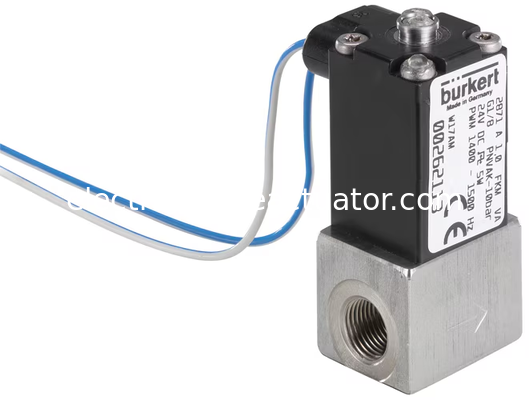

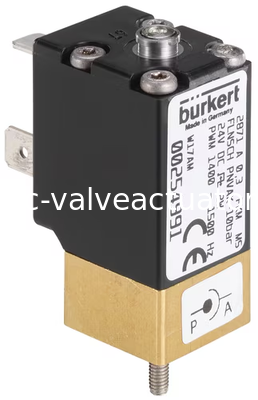

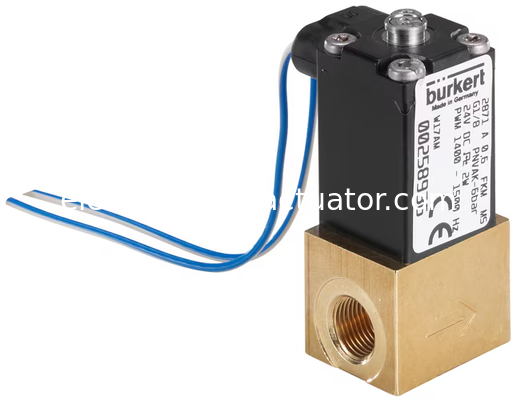

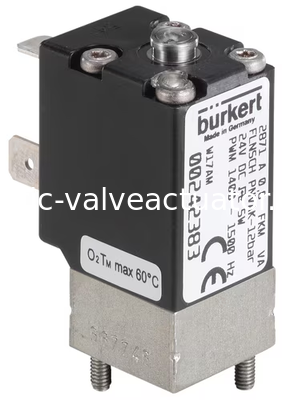

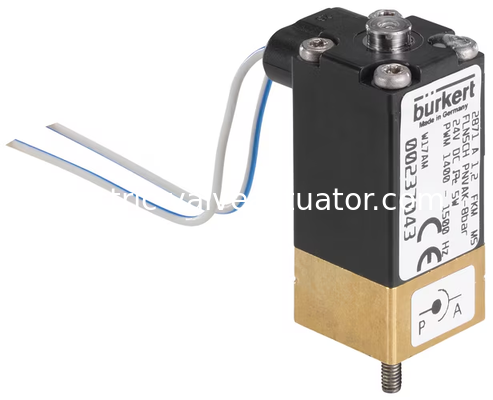

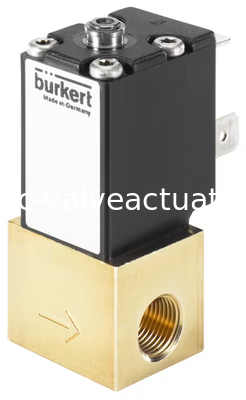

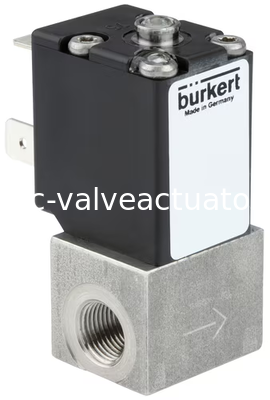

Bürkert Type 2871 Electronic Modulating Valve for Precise Media Management

The Bürkert Type 2871 is a high-performance direct-acting 2/2-way electronic modulating valve engineered for ultra-precise fluid and gas media control. Tailored for demanding industrial regulation tasks, it delivers consistent, repeatable flow adjustment, making it a core component for sophisticated media management systems across diverse precision industries.

Key Features

Wide 1:200 control range for precise regulation
Fast response time for real-time flow adjustment
Compact, lightweight design for space-constrained installations
Frictionless plunger structure for exceptional linear regulation
Excellent sealing with built-in shut-off function
Nominal diameter range: DN 0.05 - 2.0 mm
1/8" connection or baseplate connection options

Technical Performance

Built with a frictionless plunger structure, the Type 2871 achieves exceptional linear regulation characteristics and responsive dynamic performance. It features an impressive 1:200 wide control range, paired with rapid signal response to ensure real-time, accurate flow fine-tuning.

Orifice Sizes: 0.05 mm to 2.0 mm

Connection Types: 1/8" thread or sub-base mounting

Construction Materials: Premium stainless steel, PCTFE and FKM sealing materials

Operation: Normally closed modulating valve with no differential pressure requirement

System Integration

Compatible with Bürkert Type 8605 PWM controller, the valve converts standard analog signals to precise plunger position adjustment via PWM signal duty cycle, enabling stepless proportional flow control. This simplifies system configuration and reduces auxiliary equipment costs.

Ideal Applications

Perfect for laboratory analysis, medical equipment, environmental monitoring, and fine chemical processing. The Bürkert Type 2871 balances precision, stability and versatility, elevating industrial media control accuracy and operational consistency for smarter, more reliable fluid system management.
