SICK AFM60S-BDSC262144 Safety Multiturn Absolute Encoder, SSI Interface, SIL3 / PLe

Name: SICK AFM60S-BDSC262144 Safety Multiturn Absolute Encoder, SSI Interface, SIL3 / PLe
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: AFM60S-BDSC262144
Price: 1.00 USD
Availability: InStock

Nama merek:	SICK
Nomor Model:	AFM60S-BDSC262144
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Rating & Ulasan

Informasi Rinci

Tempat asal:

OEM

Antarmuka Komunikasi:

SSI

Detail antarmuka komunikasi:

SSI + Sin/Cos

Waktu inisialisasi:

2 detik 1)

Waktu pembuatan data lokasi:

<1 mikrodetik

Frekuensi Keluaran:

≤ 153,6kHz

Resistansi beban:

≥ 120Ω

Sinyal antarmuka sebelum pembangkitan diferensial:

0,5 Vss, ± 20 %

Offset sinyal sebelum pembangkitan diferensial:

2,5 V ± 10 %

Sinyal antarmuka yang dihasilkan secara diferensial:

1 Vss, ± 20 %

Tegangan suplai:

4.5...30V

Pemborosan daya:

0,7 W (tanpa beban)

Kemasan rincian:

Kotak Asli Baru

Deskripsi Produk

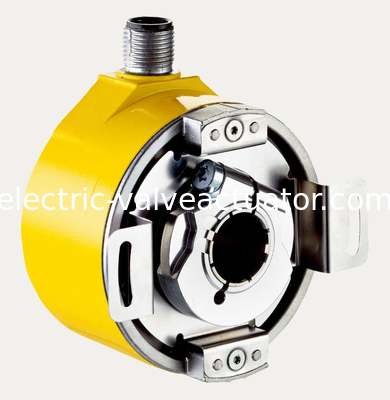

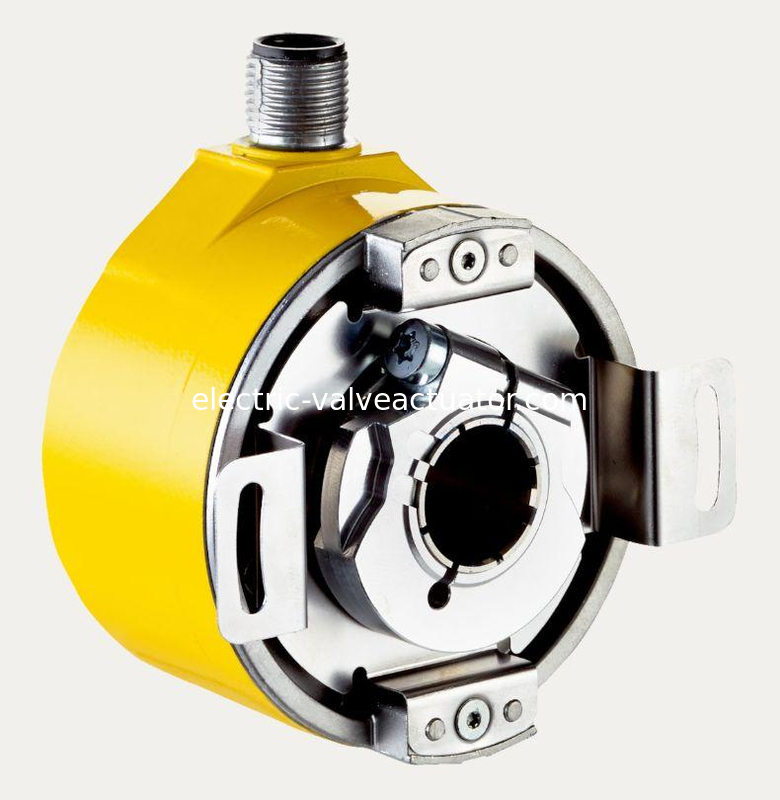

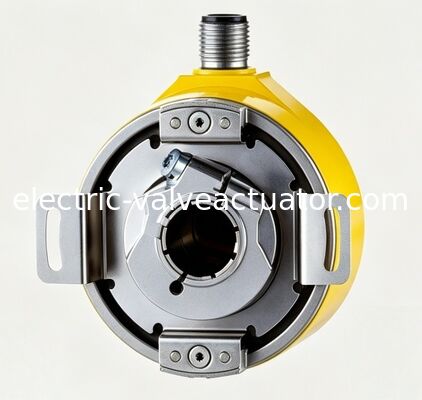

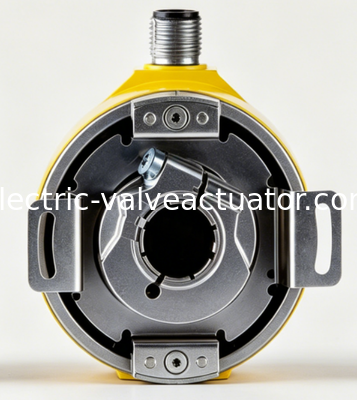

SICK AFM60S-BDSC262144 Safety Multiturn Absolute Encoder, SSI Interface, SIL3 / PL e

Product Overview

The SICK AFM60S-BDSC262144 is a high-performance safety-certified multiturn absolute encoder engineered for critical industrial motion control applications requiring maximum operational reliability and functional safety.

Key Features

SSI digital interface for reliable communication
Certified to SIL3 & PL e safety grades for functional safety compliance
Absolute position feedback across full multiturn rotation ranges
No battery backup required - eliminates downtime risks from power failure
Robust hollow-shaft mechanical structure with compact yellow housing
Anti-torsion mounting brackets for secure installation
Standard threaded M12 connector for seamless field wiring
262,144 resolution per turn for ultra-precise angular positioning
Rugged construction with optimized ingress protection
Compliant with IEC 61508 and EN ISO 13849 safety standards

Technical Specifications

Interface	SSI (Synchronous Serial Interface)
Resolution	262,144 counts per turn
Safety Certification	SIL3 / PL e
Connector	M12 threaded connector
Mounting	Anti-torsion mounting brackets
Shaft Type	Hollow shaft

Applications

Ideal for crane lifting systems, machine tool axes, packaging automation, safety-critical material handling equipment, servo motors, and heavy-duty automation machinery.

Integration Benefits: Standardized SSI communication enables effortless integration with mainstream safety PLC and motion controller platforms, streamlining system configuration and reducing commissioning workload.

Environmental Durability

Built to endure harsh workshop environments with rugged metal internal components and optimized protection against dust, moisture, and mechanical vibration.

Safety Functions

Validated for safety-related drive monitoring, overtravel limitation, and speed supervision applications in compliance with global functional safety standards.
