SICK AFM60S-S1SL262144 Safety Position Detection Encoder for Automated Machinery

Name: SICK AFM60S-S1SL262144 Safety Position Detection Encoder for Automated Machinery
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: AFM60S-S1SL262144
Price: 1.00 USD
Availability: InStock

Nama merek:	SICK
Nomor Model:	AFM60S-S1SL262144
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Rating & Ulasan

Informasi Rinci

Tempat asal:

OEM

Langkah per putaran (resolusi maksimum):

262.144 (18bit)

Jumlah Belokan:

4.096 (12bit)

Resolusi maksimum (langkah per putaran x putaran):

18 bit x 12 bit (262.144 x 4.096)

Batas kesalahan G:

0,05°1)

Deviasi standar berulang atau:

0,002° 2)

Antarmuka Komunikasi:

SSI

Detail Antarmuka Komunikasi:

SSI+Dosa/Cos

Waktu inisialisasi:

2 detik 1)

Waktu pembuatan data lokasi:

< 1 mikrodetik

Periode sinus/kosinus per siklus:

1.024

Frekuensi Keluaran:

≤ 153,6kHz

Resistansi beban:

≥ 120Ω

Tegangan suplai:

4.5...32V

Kecepatan Kerja:

≤ 9000 menit ⁻¹

Kemasan rincian:

Kotak Asli Baru

Deskripsi Produk

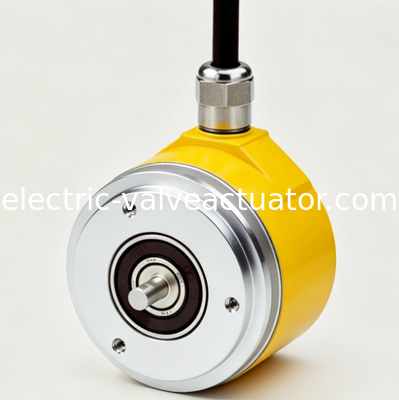

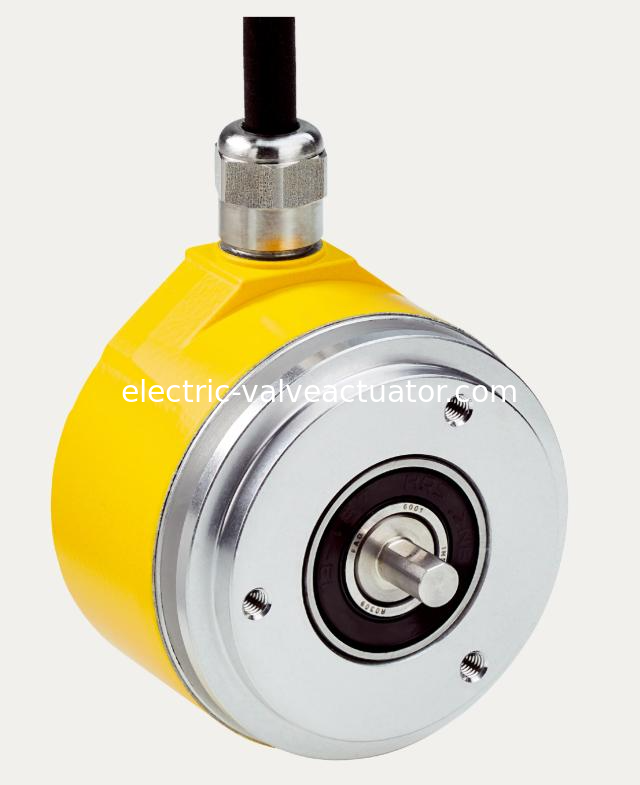

SICK AFM60S-S1SL262144 Safety Position Detection Encoder

The SICK AFM60S-S1SL262144 Safety Position Detection Encoder represents the pinnacle of precision and protection for automated machinery, seamlessly integrating high-resolution absolute feedback with the highest levels of functional safety to redefine operational reliability in demanding industrial environments.

Safety Certifications & Standards

Fully certified to SIL3 (IEC 61508) and PL e (EN ISO 13849-1)
Provides robust foundation for critical safety functions

Technical Specifications

Resolution	30-bit total resolution (18 bits per revolution - 262,144 steps, 12 bits for multi-turn tracking - 4,096 revolutions)
Safety Accuracy	0.09° for Category 3 systems
Environmental Rating	IP65/IP67 enclosure
Operating Temperature	-30°C to +85°C
Communication Interfaces	SSI and Sin/Cos interfaces

Safety Functions

Safe Torque Off (STO)
Safe Stop 1 & 2 (SS1, SS2)
Safe Operating Stop (SOS)
Safe Speed Monitoring (SSM/SSR)

Integration & Programming

Seamless integration with SICK Flexi Soft safety controllers
Programmable via PGT-08-S or PGT-10-Pro tools
Customizable resolution, counting direction, and offset values
Integrated fault memory with diagnostic data through SICK Safety Designer software

Applications

Automated Guided Vehicles (AGVs) for dynamic speed control
Industrial presses for safe human-machine collaboration
Renewable energy systems for precise pitch monitoring
Automotive manufacturing, logistics, and heavy industry

By minimizing error margins, preventing hazardous movements, and reducing the need for physical guarding, this encoder significantly lowers operational risks and costs, making it an indispensable component for achieving maximum productivity without compromising workforce safety or asset integrity.
