Phoenix Contact FL SWITCH SFNB 5TX Industrial Ethernet Switch 5-Port RJ45 10/100 Mbps | 2891001

Nama merek:	Phoenix
Nomor Model:	FL BERALIH SFNB 5TX - 2891001
MOQ:	1
harga:	Dapat dinegosiasikan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

OEM

Tekanan udara (operasi):

86 kPa... 108 kPa (sampai ketinggian 1500 meter)

Tekanan udara (penyimpanan/transportasi):

66 kPa... 108 kPa (sampai ketinggian 3500 m)

Antarmuka Ethernet:

（RJ45）

Jumlah port:

5 (pelabuhan RJ45)

Kecepatan Transmisi:

10/100 Mbit/dtk

Panjang transmisi:

100 meter (per segmen)

Tegangan Catu Daya:

24VDC

Kisaran tegangan catu daya:

12VDC...48VDC

Konsumsi saat ini yang khas:

185 mA (AS = 24 V DC)

Konsumsi arus maksimum:

345 mA (untuk 12 V DC)

Kemasan rincian:

Kotak asli baru

Deskripsi Produk

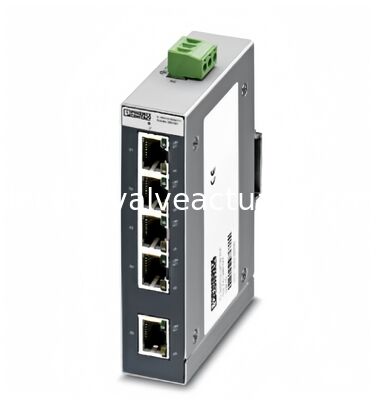

Phoenix Contact FL SWITCH SFNB 5TX Industrial Ethernet Switch

The Phoenix Contact FL SWITCH SFNB 5TX (2891001) is a high-performance unmanaged industrial Ethernet switch engineered for reliable, plug-and-play network connectivity in harsh industrial environments.

Product Overview

Designed to meet the rigorous demands of factory automation, building control systems, and industrial networking applications, this 5-port RJ45 switch delivers stable 10/100 Mbps fast Ethernet transmission, serving as a cost-effective and compact core component for industrial network infrastructure.

Key Features

Five standard RJ45 TP ports with 10/100 Mbps speed negotiation
Auto-crossing functionality for simplified cable setup
IEEE 802.3 industrial Ethernet standards compliance
Store-and-forward switching mode with 1K MAC address table
Intuitive LED status indicators for real-time monitoring
Plug-and-play operation with no software programming required

Technical Specifications

Port Configuration: 5 x RJ45 TP Ports
Data Rate: 10/100 Mbps Fast Ethernet
Switching Mode: Store-and-Forward
MAC Address Table: 1K entries
Housing: Robust aluminum with IP20 protection
Operating Temperature: -10°C to +60°C
Dimensions: 28mm * 110mm * 70mm
Mounting: Standard DIN rail
Product ID: 2891001

Industrial Durability

Built for industrial environments, the device features a robust aluminum housing with IP20 protection rating, providing excellent resistance to vibration, dust, and corrosion. It operates stably in extreme working conditions found in workshops, production lines, and outdoor industrial sites.

Applications

Tailored for small and medium-scale industrial network architectures, this switch is widely applicable to automated production equipment, intelligent warehousing, security monitoring, and building automation systems. Combining outstanding reliability, easy operability and industrial-grade toughness, it is an ideal choice for stable and efficient industrial network connections.
