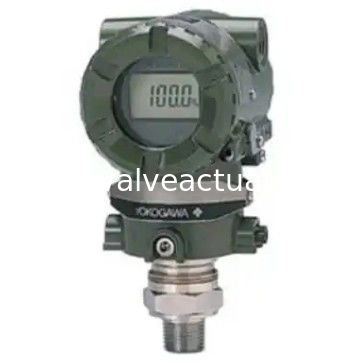

EJA130A-EMS4A-92DA/NF1 Yokogawa pemancar tekanan diferensial tinggi

Yokogawa EJA130 seri tekanan tinggi statis pemancar tekanan diferensial

EJA130A-EMS4A-92DA/NF1 Yokogawa EJA130 seri tinggi statisTransmitter tekanan diferensial

Nama: Yokogawa EJAE118 pemancar
Model: pemancar EJAE118/EJX118
Merek: Yokogawa
Pengantar Produk
Spesifikasi;
Transmitter tekanan diferensial tertutup diafragma EJA118E
Kotak membran M
H kotak membran
Jangkauan pengukuran;
-100 ~ 100kPa
-500 ~ 500kPa
(-400~400inH2O)
(-2000~2000inH2O)
Jangkauan pengukuran;
2.5 ~ 100 kPa
25 ~ 500kPa
(10~400inH2O)
(100~2000inH2O)
Keakuratan;
± 0,2%
± 0,2%
Tingkat perlindungan;
IP66/IP67,NEMA 4X
Spesifikasi tahan ledakan;
NEPSI, FM, CENELEC, ATEX, CSA, IECEx
Sinyal output;
4-20mA DC, BRAIN, HART/HART (1-5V DC) konsumsi daya rendah, FOUNDATION TM Fieldbus atau PROFIBUS PA komunikasi digital dua kabel
Sumber Daya Listrik;
BRAN dan HART: 10,5 ~ 42V DC (biasa dan tahan ledakan) 10,5 ~ 32V DC (dengan penangkap petir) 10,5 ~ 30V DC (keamanan intrinsik, tipe n, tidak mudah terbakar) Komunikasi digital (BRAN dan HART: 16.6V DC) HART (1-5V): 9 ~ 28V DC
Fieldbus: 9~32V DC (Mode Entitas Keamanan Intrinsik: 9~24V DC, Mode FISCO Keamanan Intrinsik: 9~17.5V DC)
Suhu lingkungan;
-40-85 °C (-40~185 °F) (jenis biasa)
-30 ~ 60 °C (-22 ~ 140 °F) (meja tampilan internal)
Suhu lingkungan harus berada dalam kisaran suhu kerja cairan pengisi
Suhu proses;
-50~250°C (-58~482°F)
Suhu lingkungan harus berada dalam kisaran suhu kerja cairan pengisi
Tekanan kerja
Tekanan nominal flange
Pemasangan;
Transmitter: instalasi tabung 2 inci
Segel diafragma: pemasangan flange
Ukuran flange;
Jenis flange datar: 3 inci (80mm), 2 inci (50mm), 1 1/2 inci (40mm)
Jenis flange cembung: 4 inci (100mm), 3 inci (80mm)
Jenis kombinasi:
Sisi tekanan tinggi dari flange cembung: 4 inci (100mm)
Flange datar sisi tekanan rendah: 3 inci (80mm)
Bahan membran;
316 SST 316LSST, Hastelloy C-276, Tantalum, Titanium, Nikel, Monel
Bahan flange;
S25C,304 SST,316 SST
Kerang;
Paduan aluminium tuang, paduan aluminium tuang tahan korosi, ASTM CF-8M stainless steel

Kami juga memiliki model berikut dari YOKOGAWA

Transmitter tekanan diferensial EJA110A-EVS4A-92DA/NF1

Instrumen Yokogawa EJA530E Transmitter Tekanan EJA110A Transmitter Tekanan Diferensial

EJA110E Sinyal 4-20mA

Transmitter tekanan EJA110
EJA120 Wei Differensial Pressure Transmitter
EJA430 pemancar tekanan
EJA530 pemancar tekanan
EJA210 pemancar tekanan flange tunggal
EJA118 Transmitter Tekanan Flange Ganda
EJA110A-EL
EJA110A-EM
EJA110A-EH
EJA120A
EJA430A
EJA530A
EJA210A
EJA118W
EJA110E
EJA120E
EJA430E
EJA530E
EJA210E
EJA118E

YOKOGAWA Yokogawa pemancar EJA110A-DLS4A-92NA mode spot baru S1

Kemasan asli asli yang baru, dengan aksesori bracket, tidak ada manual
Tekanan kerja maksimum 16MPA, rentang pabrik 0 T0 10 KPA

Transmitter tekanan Yokogawa Transmitter tekanan diferensial EJA110A EJA530A EJA430A EJA210A

Chuanyi EJA110A pemancar tekanan diferensial asli Yokogawa EJA110E pemancar EJA430A pemancar tekanan

EJA530A-JBS4N-012EL Yokogawa pemancar EJA530A-JBS4N-012EL

Karena halaman terbatas, tidak mungkin untuk mengunggah informasi rinci untuk setiap model satu per satu.

Tolong berikan modelnya langsung dan tanyakan harga.

dengan Yokogawa Corporation, tanpa perbedaan harga perantara, kami juga dapat menyediakan model sebagai berikut,

Yokogawa EJA130 seri tekanan tinggi statis pemancar tekanan diferensial:

EJA130A-DMS4A-92DA EJA130A-DMS4A-22DC EJA130A-EMS4A-92DA EJA130A-EMS4A-22DC
EJA130A-DHS4A-92DA EJA130A-DHS4A-22DC EJA130A-EHS4A-92DA
EJA130A-DMS5A-92DA EJA130A-DMS5A-22DC EJA130A-EMS5A-92DA EJA130A-EMS5A-22DC
EJA130A-DHS5A-92DA EJA130A-DHS5A-22DC EJA130A-EHS5A-92DA
EJA130-DMS4A-92DN EJA130-DMS4A-22DN EJA130-EMS4A-92DN EJA130-EMS4A-22DN
EJA130A-DHS4A-92DN EJA130A-DHS4A-22DN EJA130A-EHS4A-92DN
EJA5A-DMS5A-92DN EJA130A-DMS5A-22DN EJA130A-EMS5A-92DN EJA130A-EMS5A-22DN
EJA130A-DHS5A-92DN EJA130A-DHS5A-22DN EJA130A-EHS5A-92DN
EJA130A-DMS4A-92NA EJA130A-DMS4A-22NC EJA130A-EMS4A-92NA EJA130A-EMS4A-22NC
EJA130A-DHS4A-92NA EJA130A-DHS4A-22NC EJA130A-EHS4A-92NA
EJA130A-DMS5A-92NA EJA130A-DMS5A-22NC EJA130A-EMS5A-92NA EJA130A-EMS5A-22NC
EJA130A-DHS5A-92NA EJA130A-DHS5A-22NC EJA130A-EHS5A-92NA
EJA130A-DMS4A-92NN EJA130A-DMS4A-22NN EJA130A-EMS4A-92NN EJA130A-EMS4A-22NN
EJA130A-DHS4A-92NN EJA130A-DHS4A-22NN EJA130A-EHS4A-92NN EJA130A-EHS4A-22NN
EJA130A-DMS5A-92NN EJA130A-DMS5A-22NN EJA130A-EMS5A-92NN EJA130A-EMS5A-22N
EJA130A-DHS5A-92NN EJA130A-DHS5A-22NN
EJA130A-DMS4A-92DA/NF1 EJA130A-DMS4A-22DC/NF1
EJA130A-EMS4A-22DC/NF1 EJA130A-DHS4A-92DA/NF1
EJA130A-EHS4A-92DA/NF1 EJA130A-EHS4A-22DC/NF1
EJA130A-DMS5A-22DC/NF1 EJA130A-EMS5A-92DA/NF1 EJA130A-EMS5A-22DC/NF1
EJA130A-DHS5A-92DA/NF1 EJA130A-DHS5A-22DC/NF1
EJA130A-EHS5A-22DC/NF1 EJA130A-DMS4A-92DN/NF1
EJA130A-EMS4A-92DN/NF1 EJA130A-EMS4A-22DN/NF1
EJA130A-DHS4A-22DN/NF1 EJA130A-EHS4A-92DN/NF1
EJA130A-DMS5A-92DN/NF1 EJA130A-DMS5A-22DN/NF1
EJA130A-EMS5A-22DN/NF1 EJA130A-DHS5A-92DN/NF1
EJA130A-EHS5A-92DN/NF1 EJA130A-EHS5A-22DN/NF1
EJA130A-DMS4A-22NC/NF1 EJA130A-EMS4A-92NA/NF1
EJA130A-DHS4A-92NA/NF1 EJA130A-DHS4A-22NC/NF1
EJA130A-EHS4A-22NC/NF1 EJA130A-DMS5A-92NA/NF1
EJA130A-EMS5A-92NA/NF1 EJA130A-EMS5A-22NC/NF1 EJA130A-DHS5A-92NA/NF1
EJA130A-DHS5A-22NC/NF1 EJA130A-EHS5A-92NA/NF1 EJA130A-EHS5A-22NC/NF1
EJA130A-DMS4A-92NN/NF1 EJA130A-DMS4A-22NN/NF1 EJA130A-EMS4A-92NN/NF1
EJA130A-EMS4A-22N/NF1 EJA130A-DHS4A-92N/NF1 EJA130A-DHS4A-22N/NF1
EJA130A-EHS4A-92NN/NF1 EJA130A-EHS4A-22NN/NF1 EJA130A-DMS5A-92NN/NF1
EJA130A-DMS5A-22N/NF1 EJA130A-EMS5A-92N/NF1 EJA130A-EMS5A-22N/NF1
EJA130A-DHS5A-92NN/NF1 EJA130A-DHS5A-22NN/NF1
EJA130A-EHS5A-22NN/NF1 EJA130A-DMS4A-92DA/NS1 EJA130A-DMS4A-22DC/NS1
EJA130A-EMS4A-92DA/NS1 EJA130A-EMS4A-22DC/NS1 EJA130A-DHS4A-92DA/NS1
EJA130A-DHS4A-22DC/NS1 EJA130A-EHS4A-92DA/NS1 EJA130A-EHS4A-22DC/NS1
EJA130A-DMS5A-92DA/NS1 EJA130A-DMS5A-22DC/NS1 EJA130A-EMS5A-92DA/NS1
EJA130A-EMS5A-22DC/NS1 EJA130A-DHS5A-92DA/NS1 EJA130A-DHS5A-22DC/NS1
EJA130A-EHS5A-92DA/NS1 EJA130A-EHS5A-22DC/NS1 EJA130A-DMS4A-92DN/NS1
EJA130A-DMS4A-22DN/NS1 EJA130A-EMS4A-92DN/NS1 EJA130A-EMS4A-22DN/NS1
EJA130A-DHS4A-92DN/NS1 EJA130A-DHS4A-22DN/NS1 EJA130A-EHS4A-92DN/NS1
EJA130A-EHS4A-22DN/NS1 EJA130A-DMS5A-92DN/NS1 EJA130A-DMS5A-22DN/NS1
EJA130A-EMS5A-92DN/NS1 EJA130A-EMS5A-22DN/NS1 EJA130A-DHS5A-92DN/NS1
EJA130A-DHS5A-22DN/NS1 EJA130A-EHS5A-92DN/NS1 EJA130A-EHS5A-22DN/NS1
EJA130A-DMS4A-92NA/NS1 EJA130A-DMS4A-22NC/NS1 EJA130A-EMS4A-92NA/NS1
EJA130A-EMS4A-22NC/NS1 EJA130A-DHS4A-92NA/NS1 EJA130A-DHS4A-22NC/NS1
EJA130A-EHS4A-92NA/NS1 EJA130A-EHS4A-22NC/NS1 EJA130A-DMS5A-92NA/NS1
EJA5A-DMS5A-22NC/NS1 EJA130A-EMS5A-92NA/NS1 EJA130A-EMS5A-22NC/NS1
EJA130A-DHS5A-92NA/NS1 EJA130A-DHS5A-22NC/NS1 EJA130A-EHS5A-92NA/NS1
EJA130A-EHS5A-22NC/NS1 EJA130A-DMS4A-92NN/NS1 EJA130A-DMS4A-22NN/NS1
EJA130A-EMS4A-92NN/NS1 EJA130A-EMS4A-22NN/NS1 EJA130A-DHS4A-92NN/NS1
EJA130A-DHS4A-22N/NS1 EJA130A-EHS4A-92NN/NS1 EJA130A-EHS4A-22N/NS1
EJA130A-DMS5A-92NN/NS1 EJA130A-DMS5A-22NN/NS1 EJA130A-EMS5A-92NN/NS1
EJA130A-EMS5A-22NN/NS1 EJA130A-DHS5A-92NN/NS1 EJA130A-DHS5A-22NN/NS1
EJA130A-EHS5A-92NN/NS1 EJA130A-EHS5A-22NN/NS1

Yokogawa EJA210 seri transmisi tekanan diferensial single flange:

EJA210A-DMSG2D5A-92DN EJA210A-EMSG2D5A-92DN EJA210A-DHSG2D5A-92DN
EJA210A-EHSG2D5A-92DN EJA210A-DMSG2D5A-92N
EJA210A-DHSG2D5A-92NN EJA210A-EHSG2D5A-92NN EJA210A-DMSG2D5A-92DN/NF1
EJA210A-EMSG2D5A-92DN/NF1 EJA210A-DHSG2D5A-92DN/NF1 EJA210A-EHSG2D5A-92DN/NF1
EJA210A-DMSG2D5A-92NN/NF1 EJA210A-EMSG2D5A-92NN/NF1 EJA210A-DHSG2D5A-92NN/NF1
EJA210A-EHSG2D5A-92NN/NF1 EJA210A-DMSG2D5A-92DN/NS1 EJA210A-EMSG2D5A-92DN/NS1
EJA210A-DHSG2D5A-92DN/NS1 EJA210A-EHSG2D5A-92DN/NS1 EJA210A-DMSG2D5A-92N/NS1
EJA210A-EMSG2D5A-92NN/NS1 EJA210A-DHSG2D5A-92NN/NS1 EJA210A-EHSG2D5A-92NN/NS1

Yokogawa EJA220 seri transmisi tekanan diferensial single flange:

EJA220A-DMSG22D5A-92DN EJA220A-EMSG22D5A-92DN EJA220A-DHSG22D5A-92DN
EJA220A-EHSG22D5A-92DN EJA220A-DMSG24D5A-92DN
EJA220A-DHSG24D5A-92DN EJA220A-EHSG24D5A-92DN EJA220A-DMSG26D5A-92DN
EJA220A-EMSG26D5A-92DN EJA220A-DHSG26D5A-92DN EJA220A-EHSG26D5A-92DN
EJA220A-DMSG22G5A-92DN EJA220A-EMSG22G5A-92DN EJA220A-DHSG22G5A-92DN
EJA220A-EHSG22G5A-92DN EJA220A-DMSG24G5A-92DN EJA220A-EMSG24G5A-92DN
EJA220A-DHSG24G5A-92DN EJA220A-EHSG24G5A-92DN EJA220A-DMSG26G5A-92DN
EJA220A-EMSG26G5A-92DN EJA220A-DHSG26G5A-92DN
EJA220A-DMSG22D5A-92NN EJA220A-EMSG22D5A-92NN EJA220A-DHSG22D5A-92NN
EJA220A-EHSG22D5A-92NN EJA220A-DMSG24D5A-92NN
EJA220A-DHSG24D5A-92NN EJA220A-EHSG24D5A-92NN
EJA220A-EMSG26D5A-92NN EJA220A-DHSG26D5A-92NN
EJA220A-DMSG22G5A-92NN EJA220A-EMSG22G5A-92NN EJA220A-DHSG22G5A-92N
EJA220A-EHSG22G5A-92NN EJA220A-DMSG24G5A-92NN EJA220A-EMSG24G5A-92NN
EJA220A-DHSG24G5A-92NN EJA220A-EHSG24G5A-92NN
EJA220A-EMSG26G5A-92NN EJA220A-DHSG26G5A-92NN
EJA220A-DMSG22D5A-92DN/NF1 EJA220A-EMSG22D5A-92DN/NF1 EJA220A-DHSG22D5A-92DN/NF
EJA220A-EHSG22D5A-92DN/NF1 EJA220A-DMSG24D5A-92DN/NF1 EJA220A-EMSG24D5A-92DN/NF1
EJA220A-DHSG24D5A-92DN/NF1 EJA220A-EHSG24D5A-92DN/NF1 EJA220A-DMSG26D5A-92DN/NF1
EJA220A-EMSG26D5A-92DN/NF1 EJA220A-DHSG26D5A-92DN/NF1 EJA220A-EHSG26D5A-92DN/NF1
EJA220A-DMSG22G5A-92DN/NF1 EJA220A-EMSG22G5A-92DN/NF1 EJA220A-DHSG22G5A-92DN/NF
EJA220A-EHSG22G5A-92DN/NF1 EJA220A-DMSG24G5A-92DN/NF1 EJA220A-EMSG24G5A-92DN/NF1
EJA220A-DHSG24G5A-92DN/NF1 EJA220A-EHSG24G5A-92DN/NF1
EJA220A-EMSG26G5A-92DN/NF1 EJA220A-DHSG26G5A-92DN/NF1 EJA220A-EHSG26G5A-92DN/NF1
EJA220A-DMSG22D5A-92NN/NF1 EJA220A-EMSG22D5A-92NN/NF1 EJA220A-DHSG22D5A-92NN/NF1
EJA220A-EHSG22D5A-92NN/NF1 EJA220A-DMSG24D5A-92NN/NF1 EJA220A-EMSG24D5A-92NN/NF1
EJA220A-DHSG24D5A-92NN/NF1 EJA220A-EHSG24D5A-92NN/NF1 EJA220A-DMSG26D5A-92NN/NF1
EJA220A-EMSG26D5A-92NN/NF1 EJA220A-DHSG26D5A-92NN/NF1 EJA220A-EHSG26D5A-92NN/NF1
EJA220A-DMSG22G5A-92NN/NF1 EJA220A-EMSG22G5A-92NN/NF1 EJA220A-DHSG22G5A-92NN/NF1
EJA220A-EHSG22G5A-92NN/NF1 EJA220A-DMSG24G5A-92NN/NF1 EJA220A-EMSG24G5A-92NN/NF1
EJA220A-DHSG24G5A-92NN/NF1 EJA220A-EHSG24G5A-92NN/NF1 EJA220A-DMSG26G5A-92NN/NF1
EJA220A-EMSG26G5A-92NN/NF1 EJA220A-DHSG26G5A-92NN/NF1 EJA220A-EHSG26G5A-92NN/NF1
EJA220A-DMSG22D5A-92DN/NS1 EJA220A-EMSG22D5A-92DN/NS1 EJA220A-DHSG22D5A-92DN/NS
EJA220A-EHSG22D5A-92DN/NS1 EJA220A-DMSG24D5A-92DN/NS1 EJA220A-EMSG24D5A-92DN/NS1
EJA220A-DHSG24D5A-92DN/NS1 EJA220A-EHSG24D5A-92DN/NS1 EJA220A-DMSG26D5A-92DN/NS1
EJA220A-EMSG26D5A-92DN/NS1 EJA220A-DHSG26D5A-92DN/NS1 EJA220A-EHSG26D5A-92DN/NS1
EJA220A-DMSG22G5A-92DN/NS1 EJA220A-EMSG22G5A-92DN/NS1 EJA220A-DHSG22G5A-92DN/NS
EJA220A-EHSG22G5A-92DN/NS1 EJA220A-DMSG24G5A-92DN/NS1 EJA220A-EMSG24G5A-92DN/NS1
EJA220A-DHSG24G5A-92DN/NS1 EJA220A-EHSG24G5A-92DN/NS1 EJA220A-DMSG26G5A-92DN/NS1
EJA220A-EMSG26G5A-92DN/NS1 EJA220A-DHSG26G5A-92DN/NS1 EJA220A-EHSG26G5A-92DN/NS1
EJA220A-DMSG22D5A-92NN/NS1 EJA220A-EMSG22D5A-92NN/NS1 EJA220A-DHSG22D5A-92NN/NS1
EJA220A-EHSG22D5A-92NN/NS1 EJA220A-DMSG24D5A-92NN/NS1 EJA220A-EMSG24D5A-92NN/NS1
EJA220A-DHSG24D5A-92NN/NS1 EJA220A-EHSG24D5A-92NN/NS1 EJA220A-DMSG26D5A-92NN/NS1
EJA220A-EMSG26D5A-92NN/NS1 EJA220A-DHSG26D5A-92NN/NS1 EJA220A-EHSG26D5A-92NN/NS1
EJA220A-DMSG22G5A-92NN/NS1 EJA220A-EMSG22G5A-92NN/NS1 EJA220A-DHSG22G5A-92NN/NS1
EJA220A-EHSG22G5A-92NN/NS1 EJA220A-DMSG24G5A-92NN/NS1 EJA220A-EMSG24G5A-92NN/NS1
EJA220A-DHSG24G5A-92NN/NS1 EJA220A-EHSG24G5A-92NN/NS1 EJA220A-DMSG26G5A-92NN/NS1
EJA220A-EMSG26A-92NN/NS1 EJA220A-DHSG26A-92NN/NS1 EJA220A-EHSG26G5A-92NN/NS1
